BC807-25LW Datasheet, Transistors, nexperia

BC807-25LW Features

• Transistors
• High current
• Three current gain selections
• AEC-Q101 qualified 1.3 Applications
• General-purpose switching and amplification 1.4 Quick reference

PDF File Details

Part number:

BC807-25LW

Manufacturer:

nexperia ↗

File Size:

239.86kb

Download:

📄 Datasheet

Description:

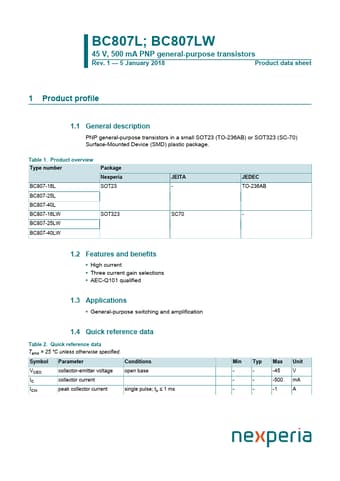

500ma pnp general-purpose transistors. PNP general-purpose transistors in a small SOT23 (TO-236AB) or SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. Table 1.

BC807-25LW Application

• Applications
• General-purpose switching and amplification 1.4 Quick reference data Table 2. Quick reference data Tamb = 25 °C unless othe
