BC807-25L Datasheet - nexperia

BC807-25L 500mA PNP general-purpose transistors

PNP general-purpose transistors in a small SOT23 (TO-236AB) or SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. Table 1. Product overview Type number BC807-16L BC807-25L BC807-40L BC807-16LW BC807-25LW BC807-40LW Package Nexperia SOT23 SOT323 JEITA - SC70 JEDEC TO-236AB - 1.2 Featur.

BC807-25L Features

* High current

* Three current gain selections

* AEC-Q101 qualified 1.3 Applications

* General-purpose switching and amplification 1.4 Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VCEO c

BC807-25L Datasheet (239.86 KB)

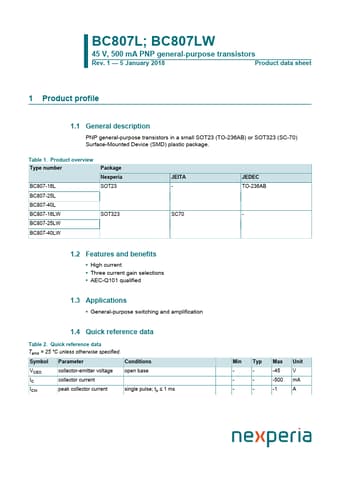

Preview of BC807-25L PDF
BC807-25L Datasheet Preview Page 2 BC807-25L Datasheet Preview Page 3

Datasheet Details

Part number:

BC807-25L

Manufacturer:

nexperia ↗

File Size:

239.86 KB

Description:

500ma pnp general-purpose transistors.
