Description

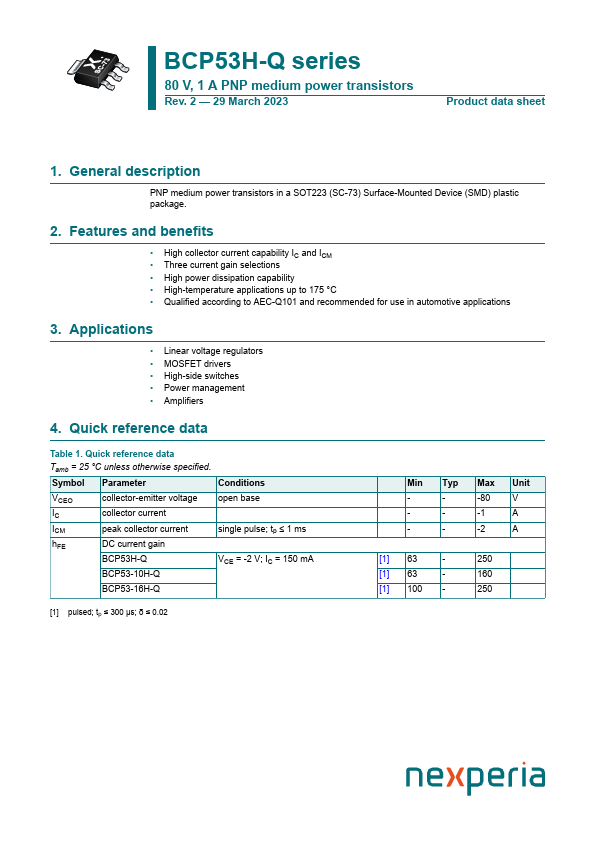

BCP53H-Q series 80 V, 1 A PNP medium power transistors Rev.2 * 29 March 2023 Product data sheet 1.General .
PNP medium power transistors in a SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package. High collector curr.

📥 Download Datasheet

BCP53-16H-Q Datasheet Preview — This datasheet PDF includes multiple part numbers: BCP53-16H-Q, BCP53H-Q. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BCP53-16H-Q, BCP53H-Q
Manufacturer: nexperia ↗
File Size: 269.89 KB
Datasheet: BCP53H-Q-nexperia.pdf
Description: 80V 1A PNP medium power transistors
Note: This datasheet PDF includes multiple part numbers: BCP53-16H-Q, BCP53H-Q.
Please refer to the document for exact specifications by model.

Features

* High collector current capability IC and ICM
* Three current gain selections
* High power dissipation capability

Applications

* up to 175 °C
* Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications
* Linear voltage regulators
* MOSFET drivers
* High-side switches
* Power management
* Amplifiers 4. Quick reference data Table 1. Quic
