BCP55

1A NPN medium power transistors

BCP55 Features

* High current

* Three current gain selections

* High power dissipation capability

* Exposed heatsink for excellent thermal and electrical conductivity (SOT89, SOT1061)

* Leadless very small SMD plastic package with medium power capability (SOT1061)

* AEC-Q101 qualified 1.3

BCP55 General Description

NPN medium power transistor series in Surface-Mounted Device (SMD) plastic packages. Table 1. Product overview Type number[1] Package Nexperia BCP55 SOT223 BCX55 SOT89 BC55PA SOT1061 JEITA SC-73 SC-62 - [1] Valid for all available selection groups. JEDEC TO-243 - PNP complement BCP52 B.

BCP55 Datasheet (1.66 MB)

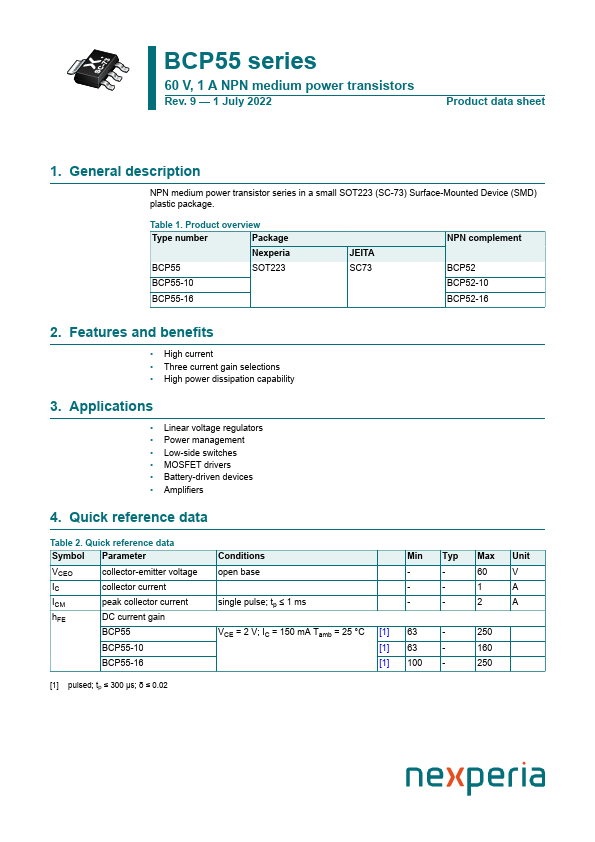

Preview of BCP55 PDF

Datasheet Details

Part number:

BCP55

Manufacturer:

nexperia ↗

File Size:

1.66 MB

Description:

1a npn medium power transistors.
BCP55; BCX55; BC55PA 60 V, 1 A NPN medium power transistors Rev. 8

* 24 October 2011 Product data sheet 1. Product profile 1.1 General des.

📁 Related Datasheet

BCP51 PNP medium power transistors (NXP)

BCP51 PNP Silicon AF Transistors (Infineon Technologies AG)

BCP51 1A PNP medium power transistors (nexperia)

BCP51 PNP General Purpose Amplifier (Fairchild Semiconductor)

BCP51 PNP MEDIUM POWER TRANSISTORS (Diodes)

BCP51-10 PNP Silicon AF Transistors (Infineon Technologies AG)

BCP51-10T 1A PNP medium power transistors (nexperia)

BCP51-16 PNP medium power transistors (NXP)

BCP51-16 PNP Silicon AF Transistors (Infineon Technologies AG)

BCP51-16T 1A PNP medium power transistors (nexperia)

TAGS

BCP55 NPN medium power transistors nexperia

Image Gallery

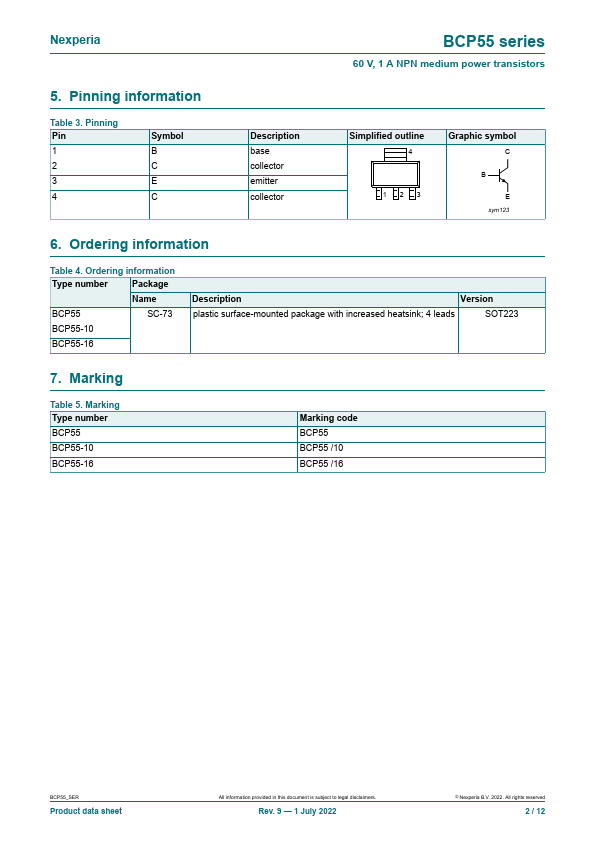

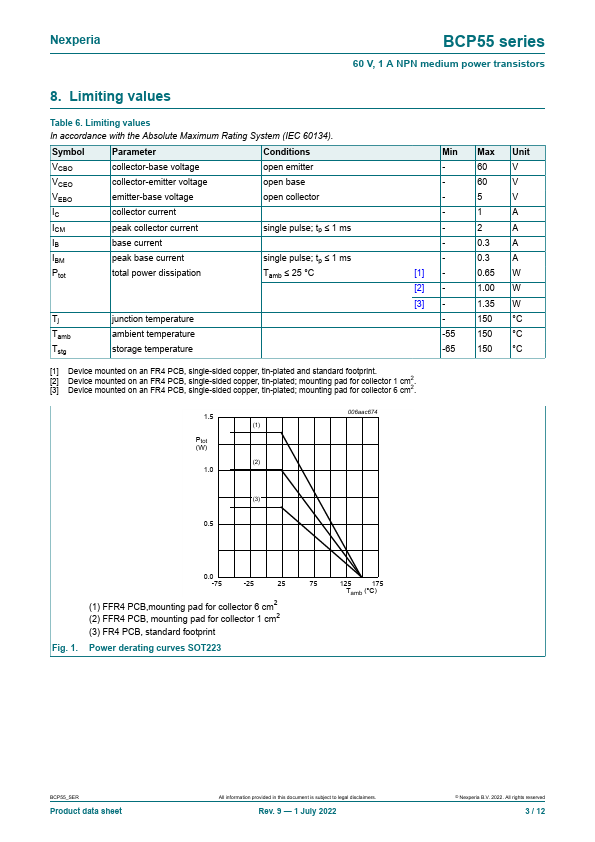

BCP55 Datasheet Preview Page 2 BCP55 Datasheet Preview Page 3
