BCP55-Q - 60V 1A NPN medium power transistors

BCP55-Q Description

BCP55-Q series 60 V, 1 A NPN medium power transistors Rev.2 * 1 July 2022 Product data sheet 1.General .
NPN medium power transistor series in a small SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.

BCP55-Q Features

* High current
* Three current gain selections
* High power dissipation capability

BCP55-Q Applications

* 3. Applications
* Linear voltage regulators
* Power management
* Low-side switches
* MOSFET drivers
* Battery-driven devices
* Amplifiers 4. Quick reference data Table 2. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC co

📥 Download Datasheet

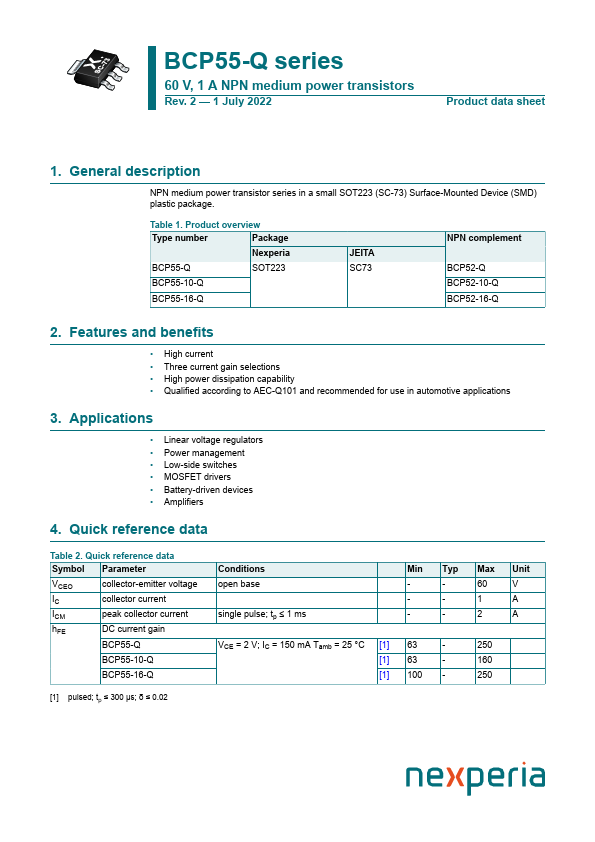

Preview of BCP55-Q PDF

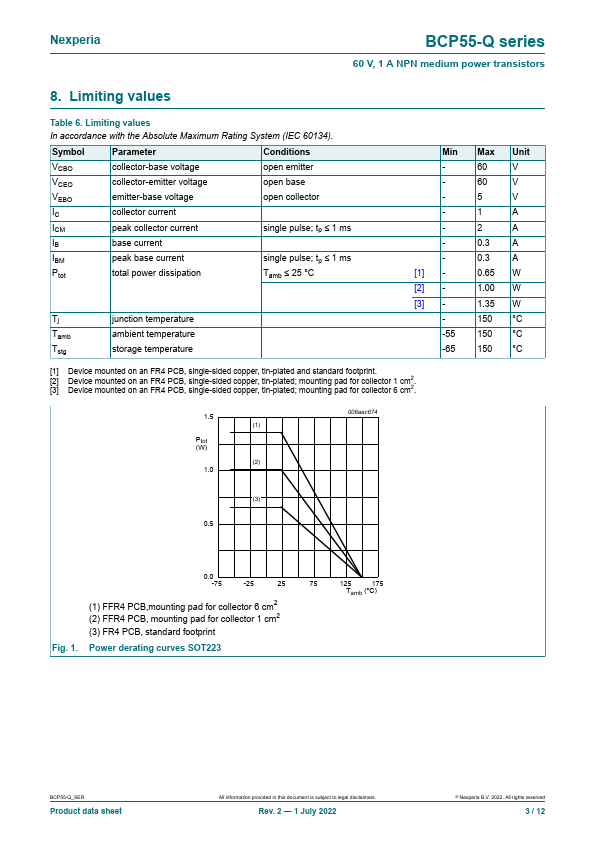

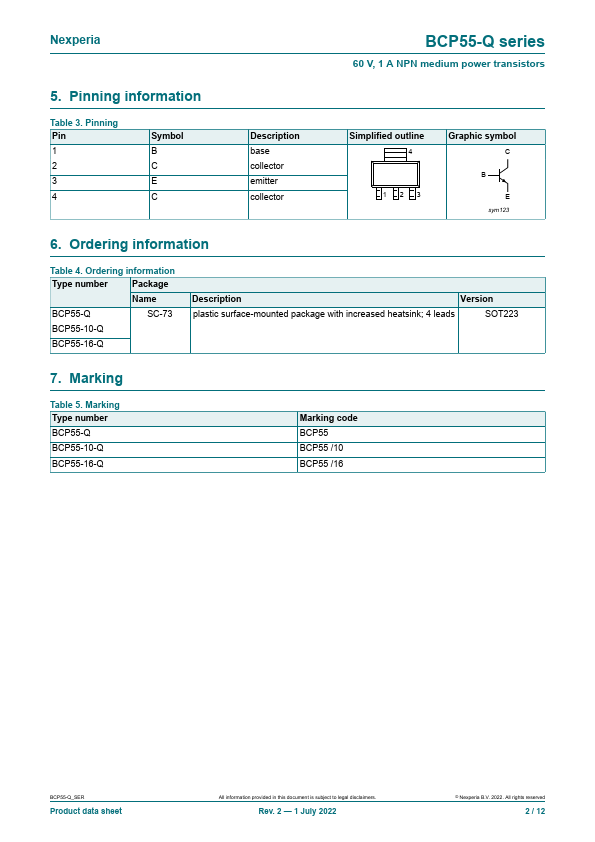

datasheet Preview Page 2 datasheet Preview Page 3
