BUK7A1R3-100L - 100V N-channel Standard Level MOSFET

Product Overview

nexperia

Datasheet Details

Part number	BUK7A1R3-100L
Manufacturer	nexperia
File Size	381.44 KB
Description	100V N-channel Standard Level MOSFET
Datasheet	BUK7A1R3-100L Datasheet

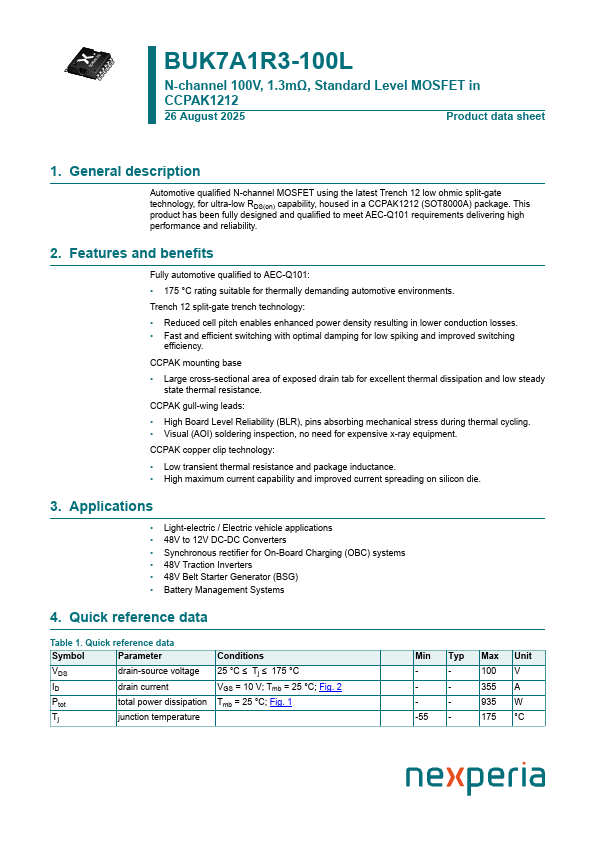

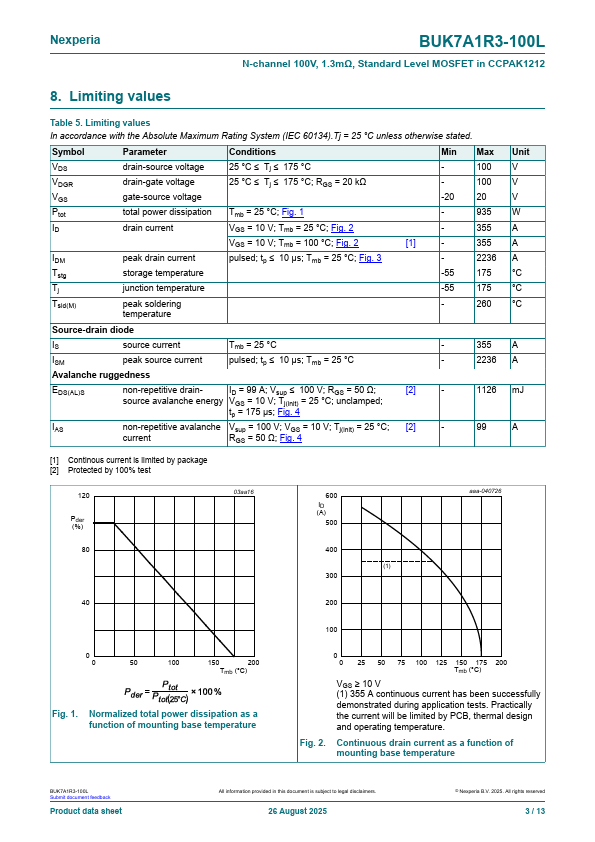

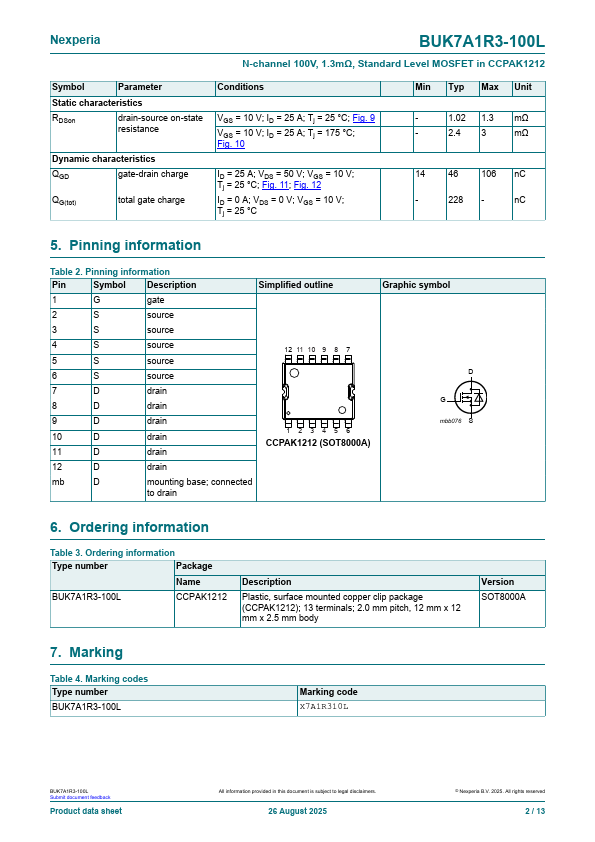

Additional preview pages of the BUK7A1R3-100L datasheet.

Product details

Description

Automotive qualified N-channel MOSFET using the latest Trench 12 low ohmic split-gate technology, for ultra-low RDS(on) capability, housed in a CCPAK1212 (SOT8000A) package.

Features

Fully automotive qualified to AEC-Q101:.
175 °C rating suitable for thermally demanding automotive environments. Trench 12 split-gate trench technology:.
Reduced cell pitch enables enhanced power density resulting in lower conduction losses.
Fast and efficient switching with optimal damping for low spiking and improved switching efficiency. CCPAK mounting base.
Large cross-sectional area of exposed drain tab for excellent thermal dissipation and low steady st.
