BUK7207-30B, TrenchMOS standard level FET

www.DataSheet4U.com BUK7207-30B TrenchMOS™ standard level FET M3D300 Rev.02 * 22 January 2004 Product data 1.Product proﬁle 1.1 Descript.
N-channel enhancement mode ﬁeld-effect power transistor in a plastic package using Philips High-Performance Automotive (HPA) TrenchMOS™ technology.

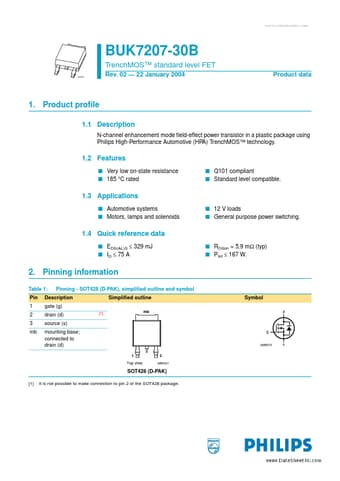

datasheet Preview Page 1 from Datasheet4u.com

BUK7207-30B_NXPSemiconductors.pdf

BUK7207-30B Datasheet Preview — Preview of BUK7207-30B PDF

Datasheet Details

Part number:

BUK7207-30B

Manufacturer:

NXP ↗ Semiconductors

File Size:

126.50 KB

Description:

TrenchMOS standard level FET

Applications

* s Automotive systems s Motors, lamps and solenoids s 12 V loads s General purpose power switching. 1.4 Quick reference data s EDS(AL)S ≤ 329 mJ s ID ≤ 75 A s RDSon = 5.9 mΩ (typ) s Ptot ≤ 167 W. 2. Pinning information Table 1: Pin 1 2 3 mb Pinning - SOT428 (D-PAK), simpliﬁed outline and symbol Sim
