BUK7212-55B, TrenchMOS standard level FET

BUK7212-55B TrenchMOS™ standard level FET M3D300 Rev.01 * 23 January 2004 Product data 1.Product proﬁle 1.1 .
N-channel enhancement mode ﬁeld-effect power transistor in a plastic package using Philips High-Performance Automotive (HPA) TrenchMOS™ technology.

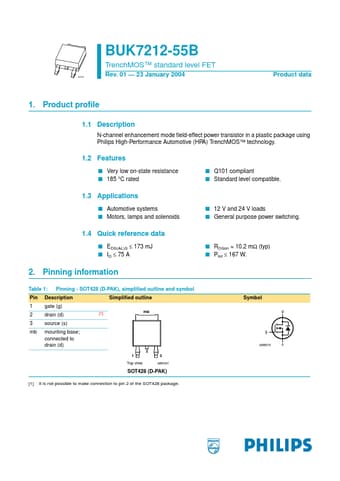

datasheet Preview Page 1 from Datasheet4u.com

BUK7212-55B_PhilipsSemiconductors.pdf

BUK7212-55B Datasheet Preview — Preview of BUK7212-55B PDF

Datasheet Details

Part number:

BUK7212-55B

Manufacturer:

NXP ↗

File Size:

99.76 KB

Description:

TrenchMOS standard level FET

Applications

* s Automotive systems s Motors, lamps and solenoids s 12 V and 24 V loads s General purpose power switching. 1.4 Quick reference data s EDS(AL)S ≤ 173 mJ s ID ≤ 75 A s RDSon = 10.2 mΩ (typ) s Ptot ≤ 167 W. 2. Pinning information Table 1: Pin 1 2 3 mb Pinning - SOT428 (D-PAK), simpliﬁed outline and
