BUK7213-40A, TrenchMOS standard level FET

BUK7213-40A TrenchMOS™ standard level FET Rev.01 * 29 January 2004 M3D300 Product data 1.Product proﬁle 1.1 .
N-channel enhancement mode ﬁeld-effect power transistor in a plastic package using Philips General-Purpose Automotive TrenchMOS™ technology.

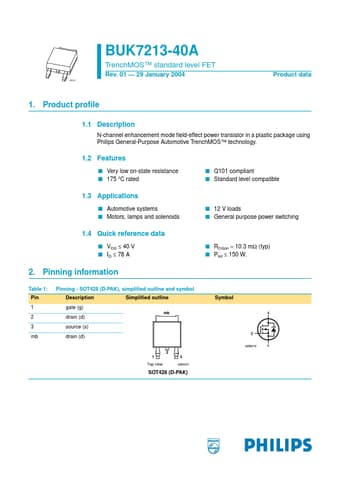

datasheet Preview Page 1 from Datasheet4u.com

BUK7213-40A_PhilipsSemiconductors.pdf

BUK7213-40A Datasheet Preview — Preview of BUK7213-40A PDF

Datasheet Details

Part number:

BUK7213-40A

Manufacturer:

NXP ↗

File Size:

113.51 KB

Description:

TrenchMOS standard level FET

Applications

* s Automotive systems s Motors, lamps and solenoids s 12 V loads s General purpose power switching 1.4 Quick reference data s VDS ≤ 40 V s ID ≤ 78 A s RDSon = 10.3 mΩ (typ) s Ptot ≤ 150 W. 2. Pinning information Table 1: Pin 1 2 3 mb Pinning - SOT428 (D-PAK), simpliﬁed outline and symbol Descriptio
