BUK7214-75B Datasheet - NXP

BUK7214-75B Standard Level Fet

BUK7214-75B Features

* s Very low on-state resistance s 185 °C rated s Q101 compliant s Standard level compatible. 1.3 Applications s Automotive systems s Motors, lamps and solenoids s 12 V, 24 V, and 42 V loads s General purpose power switching. 1.4 Quick reference data s EDS(AL)S ≤ 133 mJ s ID ≤ 70 A s RDSon = 12.6 mΩ

BUK7214-75B_PhilipsSemiconductors.pdf

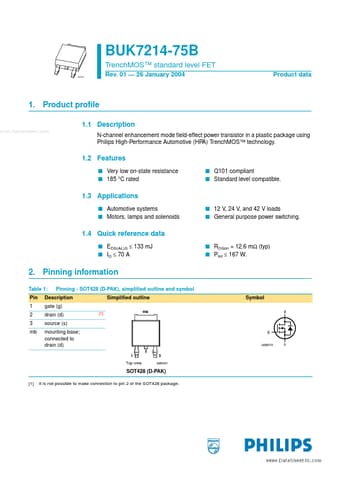

Preview of BUK7214-75B PDF
BUK7214-75B Datasheet Preview Page 2 BUK7214-75B Datasheet Preview Page 3

Datasheet Details

Part number:

BUK7214-75B

Manufacturer:

NXP ↗

File Size:

130.83 KB

Description:

Standard level fet.
