BZT52-B10, BZT52-B2V4 Datasheet - nexperia

BZT52-B10, BZT52-B2V4, Single Zener diodes

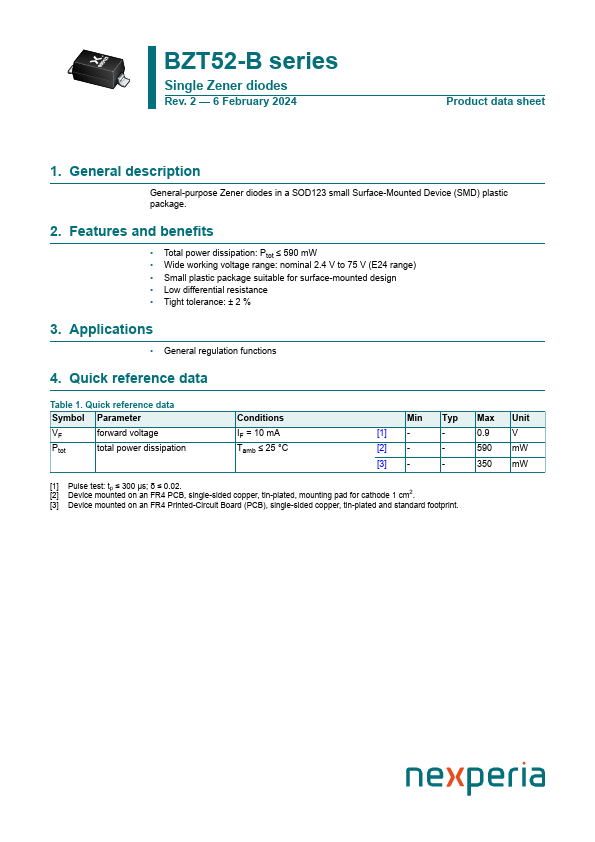

BZT52-B series Single Zener diodes Rev.2 * 6 February 2024 Product data sheet 1.General .
General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package. Total power dissipati.

datasheet Preview Page 1 from Datasheet4u.com

BZT52-B2V4-nexperia.pdf

BZT52-B10 Datasheet Preview — This datasheet PDF includes multiple part numbers: BZT52-B10, BZT52-B2V4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BZT52-B10, BZT52-B2V4

Manufacturer:

nexperia ↗

File Size:

206.24 KB

Description:

Single Zener diodes

Note:

This datasheet PDF includes multiple part numbers: BZT52-B10, BZT52-B2V4.
Please refer to the document for exact specifications by model.

Features

* Total power dissipation: Ptot ≤ 590 mW
* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
* Small plastic package suitable for surface-mounted design
* Low differential resistance

Applications

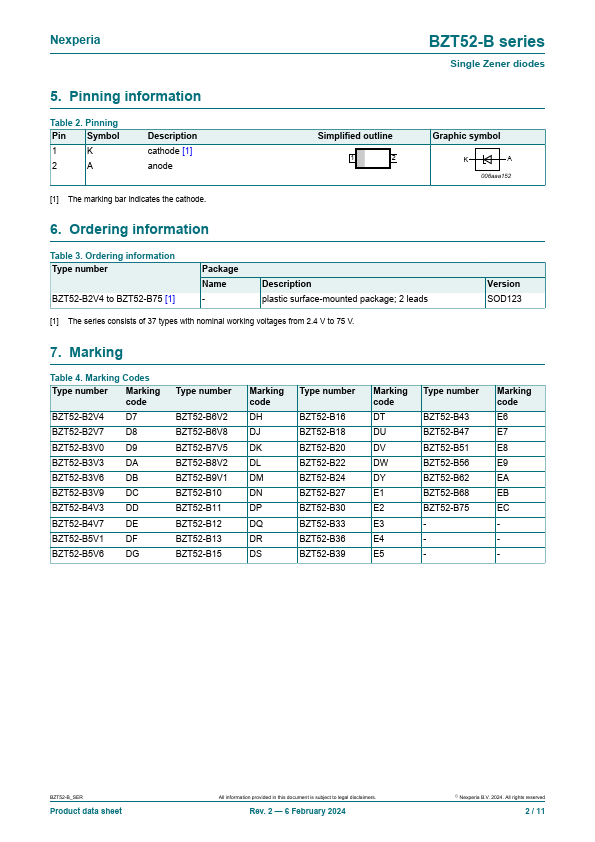

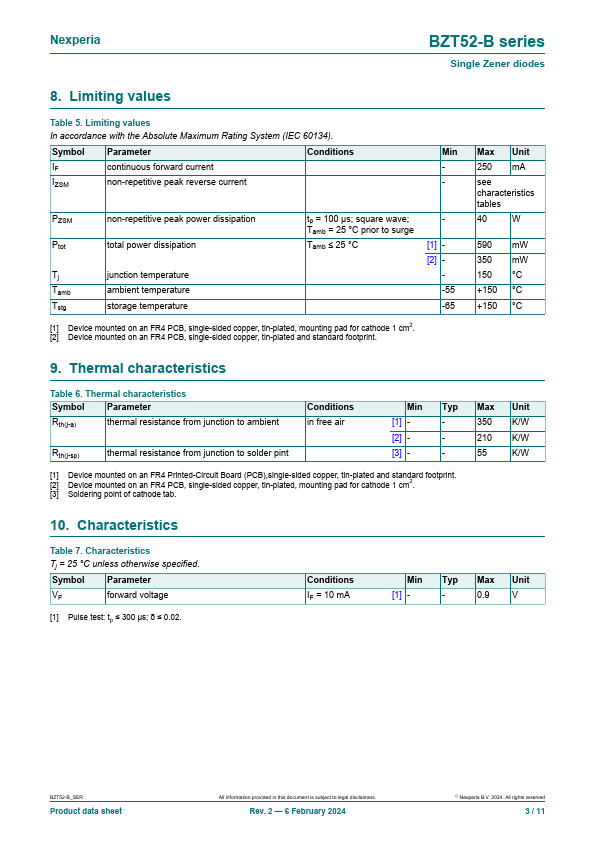

* General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Ptot total power dissipation Conditions IF = 10 mA Tamb ≤ 25 °C Min Typ [1] - - [2] - - [3] - - [1] [2] Pulse test: tp ≤ 300 μs; Device mounted on an δ ≤
