BZT52-B12-Q, BZT52-B2V4-Q Datasheet - nexperia

BZT52-B12-Q, BZT52-B2V4-Q, Voltage regulator diodes

BZT52-Q series Voltage regulator diodes Rev.1 * 29 March 2023 Product data sheet 1.General .
General-purpose Zener diodes in an SOD123 small and flat lead Surface-Mounted Device (SMD) plastic package. Total.

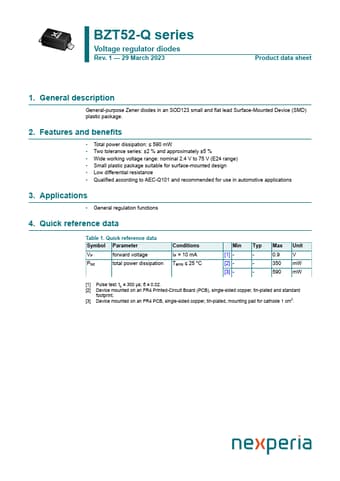

datasheet Preview Page 1 from Datasheet4u.com

BZT52-B2V4-Q-nexperia.pdf

BZT52-B12-Q Datasheet Preview — This datasheet PDF includes multiple part numbers: BZT52-B12-Q, BZT52-B2V4-Q. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BZT52-B12-Q, BZT52-B2V4-Q

Manufacturer:

nexperia ↗

File Size:

308.90 KB

Description:

Voltage regulator diodes

Note:

This datasheet PDF includes multiple part numbers: BZT52-B12-Q, BZT52-B2V4-Q.
Please refer to the document for exact specifications by model.

Features

* Total power dissipation: ≤ 590 mW
* Two tolerance series: ±2 % and approximately ±5 %
* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
* Small plastic package suitable for surface-mounted design
* Low differential resistance
* Qualifie

Applications

* 3. Applications
* General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Ptot total power dissipation Conditions IF = 10 mA Tamb ≤ 25 °C Min Typ Max Unit [1] - - 0.9 V [2] - - 350 mW [3] - - 590 mW [1] Pulse t
