BZT52-B11 Datasheet, Diodes, nexperia

BZT52-B11 Features

• Diodes
• Total power dissipation: ≤ 590 mW
• Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
• Small plastic package suitable for surface-mounted design <

PDF File Details

Part number:

BZT52-B11

Manufacturer:

nexperia ↗

File Size:

170.91kb

Download:

📄 Datasheet

Description:

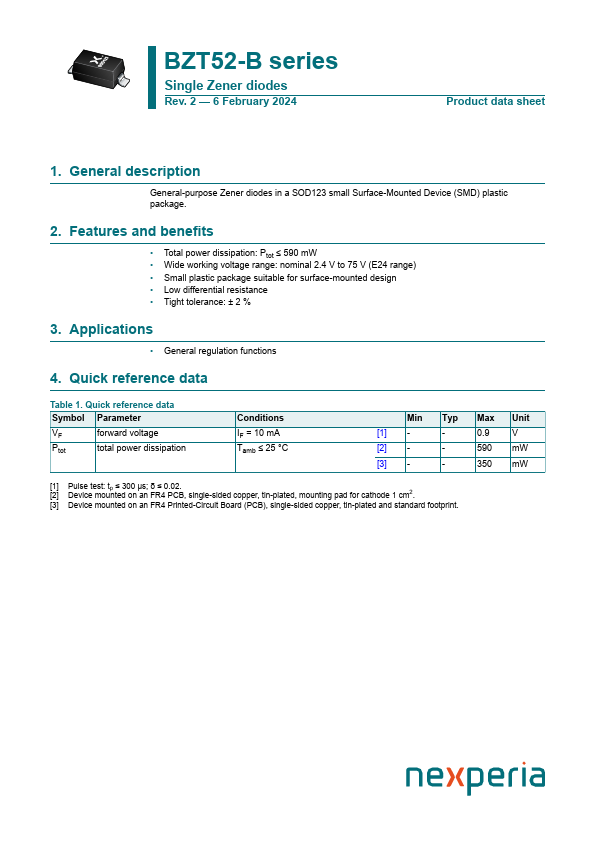

Single zener diodes. General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package. 1.2 Features and benefits

Tot

BZT52-B11 Application

• Applications
• General regulation functions 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Pto
