GS10M 1000V 10A recovery rectifier

nexperia

Description

SMC GS10M 1000 V, 10 A recovery rectifier in SMC 20 January 2025 Product data sheet 1.General .
Recovery rectifier, encapsulated in an SMC package. Reverse voltage: VR ≤ 1000 V. Forward current: IF ≤ 1.

📥 Download Datasheet

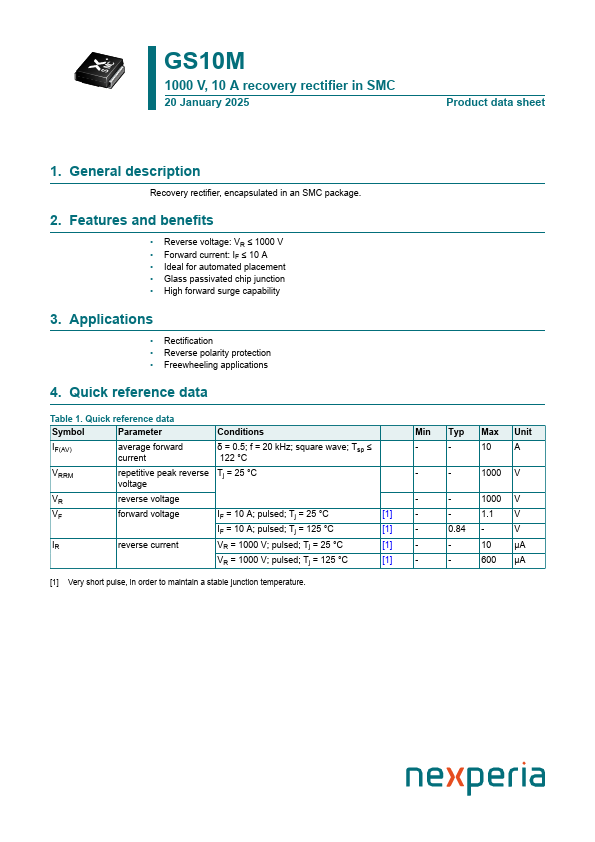

GS10M Datasheet Preview — Preview of GS10M PDF

Datasheet Specifications

Part number: GS10M
Manufacturer: nexperia ↗
File Size: 258.54 KB
Datasheet: GS10M-nexperia.pdf
Description: 1000V 10A recovery rectifier

Features

* Reverse voltage: VR ≤ 1000 V
* Forward current: IF ≤ 10 A
* Ideal for automated placement
* Glass passivated chip junction

Applications

* Rectification
* Reverse polarity protection
* Freewheeling applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF(AV) average forward current δ = 0.5; f = 20 kHz; square wave; Tsp ≤ 122 °C VRRM repetitive peak reverse Tj
