HEF4094BT - 8-stage shift-and-store register

Product Overview

nexperia

📥 Download Datasheet

HEF4094BT 8-stage shift-and-store register by nexperia - Datasheet Preview — Datasheet preview – HEF4094BT

Datasheet Details

Part number	HEF4094BT
Manufacturer	nexperia
File Size	260.71 KB
Description	8-stage shift-and-store register
Datasheet	HEF4094BT Datasheet
Note	This datasheet PDF includes multiple part numbers: HEF4094BT, HEF4094B. Please refer to the document for exact specifications by model.

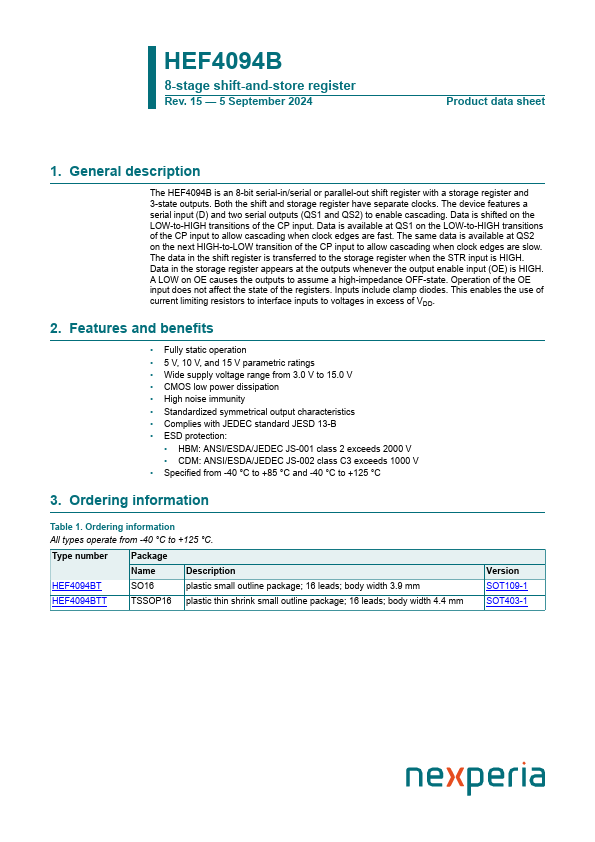

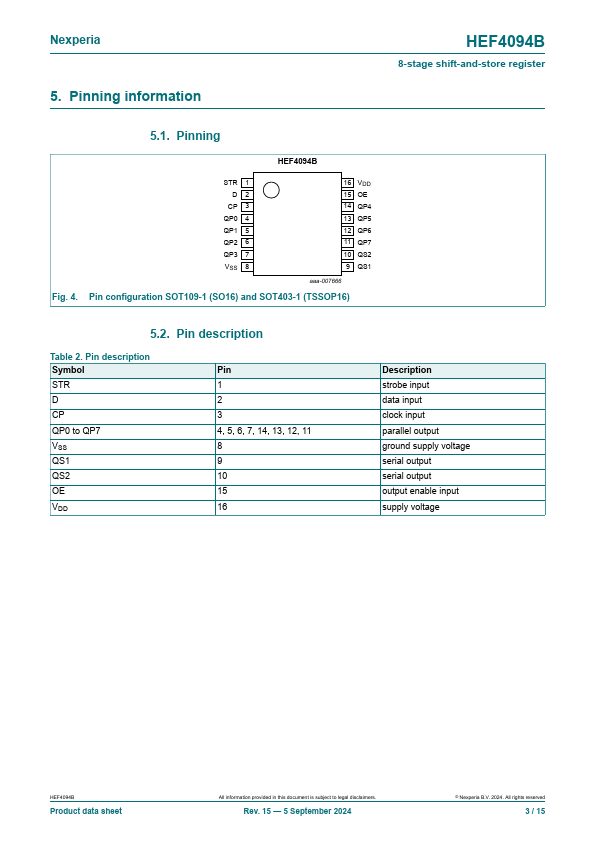

Additional preview pages of the HEF4094BT datasheet.

Product details

Description

The HEF4094B is an 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs.

Features

Fully static operation.
5 V, 10 V, and 15 V parametric ratings.
Wide supply voltage range from 3.0 V to 15.0 V.
CMOS low power dissipation.
High noise immunity.
Standardized symmetrical output characteristics.
Complies with JEDEC standard JESD 13-B.
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V.
Specified from -40 °C to +85.
