HEF40106B

The HEF40106B is Hex inverting Schmitt trigger designed by nexperia.

Product Overview

nexperia

📥 Download Datasheet

HEF40106B Hex inverting Schmitt trigger by nexperia - Datasheet Preview — Datasheet preview – HEF40106B

Datasheet Details

Part number	HEF40106B
Manufacturer	nexperia
File Size	235.35 KB
Description	Hex inverting Schmitt trigger
Datasheet	HEF40106B-nexperia.pdf

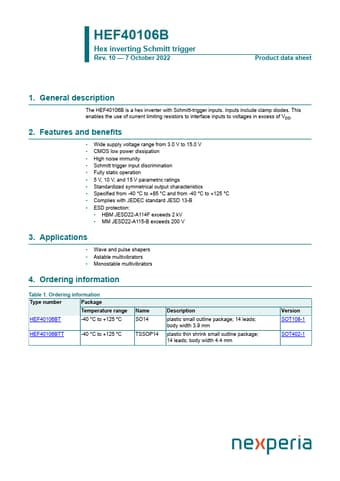

Additional preview pages of the HEF40106B datasheet.

Product details

Description

The HEF40106B is a hex inverter with Schmitt-trigger inputs.

Features

Wide supply voltage range from 3.0 V to 15.0 V.
CMOS low power dissipation.
High noise immunity.
Schmitt trigger input discrimination.
Fully static operation.
5 V, 10 V, and 15 V parametric ratings.
Standardized symmetrical output characteristics.
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Complies with JEDEC standard JESD 13-B.
ESD protection:.
HBM JESD22-A114F exceeds 2 kV.
