HEF4014B

The HEF4014B is 8-bit static shift register designed by NXP.

Product Overview

NXP

HEF4014B 8-bit static shift register by NXP - Datasheet Preview — Datasheet preview – HEF4014B

Datasheet Details

Part number	HEF4014B
Manufacturer	NXP
File Size	114.91 KB
Description	8-bit static shift register
Datasheet	HEF4014B_PhilipsSemiconductors.pdf

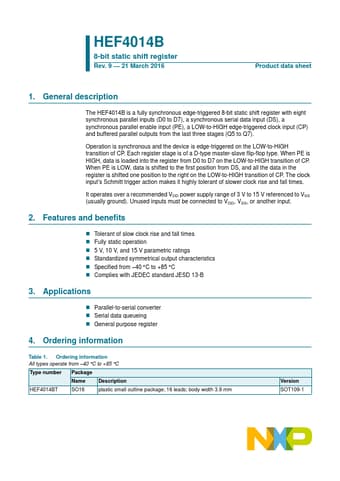

Additional preview pages of the HEF4014B datasheet.

Product details

Description

The HEF4014B is a fully synchronous edge-triggered 8-bit static shift register with eight synchronous parallel inputs (D0 to D7), a synchronous serial data input (DS), a synchronous parallel enable input (PE), a LOW-to-HIGH edge-triggered clock input (CP) and buffered parallel outputs from the last three stages (Q5 to Q7).
