HEF4014B-Q100

8-bit static shift register

HEF4014B-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 3)

* Specified from -40 °C to +85 °C

* Tolerant of slow clock rise and fall times

* Fully static operation

* 5 V, 10 V, and 15 V parametric ratings

* Standardized symmetrical output

HEF4014B-Q100 General Description

The HEF4014B-Q100 is a fully synchronous edge-triggered 8-bit static shift register with eight synchronous parallel inputs (D0 to D7). It has a synchronous serial data input (DS), a synchronous parallel enable input (PE) and a LOW-to-HIGH edge-triggered clock input (CP). It also has buffered paralle.

HEF4014B-Q100 Datasheet (200.06 KB)

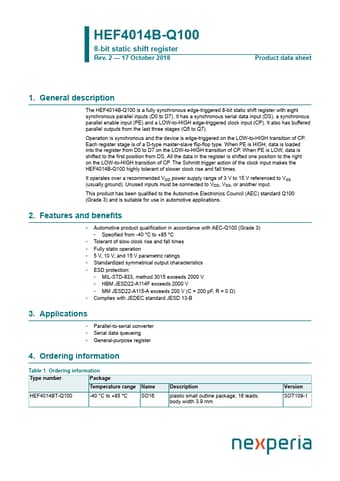

Preview of HEF4014B-Q100 PDF

Datasheet Details

Part number:

HEF4014B-Q100

Manufacturer:

nexperia ↗

File Size:

200.06 KB

Description:

8-bit static shift register.
