MJPE2873-Q - 50V 2A NPN high power bipolar transistor

Datasheet Summary

Description

NPN high power bipolar transistor in a power SOT1289B (CFP15B) flat lead Surface-Mounted Device (SMD) plastic package.

Features

High thermal power dissipation capability.
High energy efficiency due to less heat generation.
Electrically similar to popular MJD2873 series.
Low collector emitter saturation voltage.
Qualified according to AEC-Q101 and recommended for use in automotive.

nexperia

📥 Download Datasheet

Datasheet Details

Part number	MJPE2873-Q
Manufacturer	nexperia
File Size	259.31 KB
Description	50V 2A NPN high power bipolar transistor
Datasheet	MJPE2873-Q Datasheet

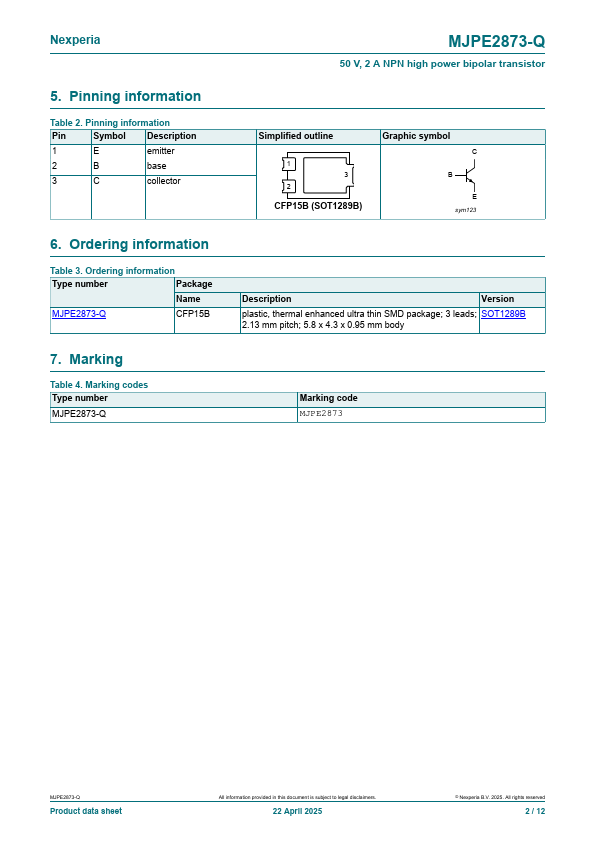

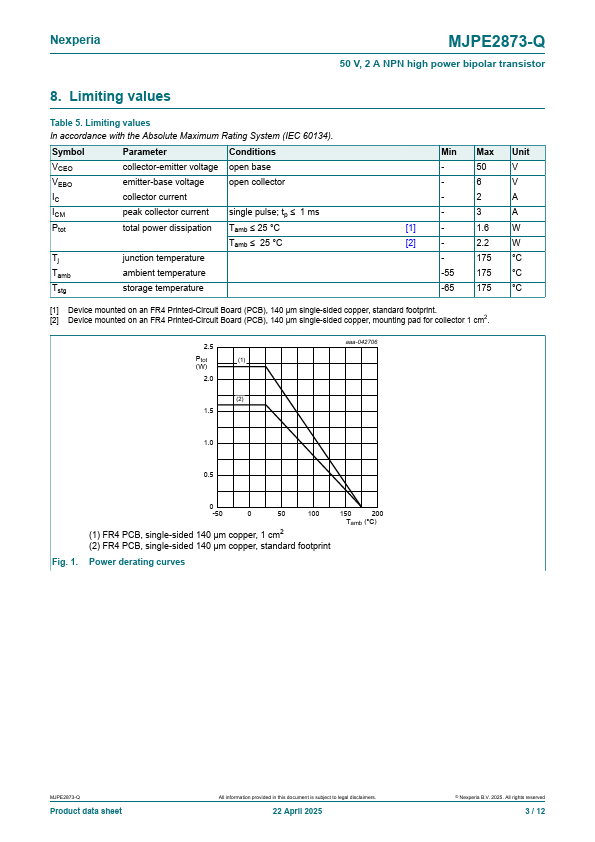

Additional preview pages of the MJPE2873-Q datasheet.

📁 Similar Datasheet

MJP-0.1 - MJP Series (ETC)
MJP-0.1-T - MJP Series (ETC)
MJP-0.2 - MJP Series (ETC)
MJP-0.2-T - MJP Series (ETC)
MJP-0.3 - MJP Series (ETC)
MJP-0.3-T - MJP Series (ETC)
MJP-0.4 - MJP Series (ETC)
MJP-0.4-T - MJP Series (ETC)
MJP-0.5 - MJP Series (ETC)
MJP-0.5-T - MJP Series (ETC)

Other Datasheets by nexperia

MJPE2873 - 50V 2A NPN high power bipolar transistor
MJPE31C - 100V 3A NPN high power bipolar transistor
MJPE31CH-Q - 100V 3A NPN high power bipolar transistor

Full PDF Text Transcription

Click to expand full text

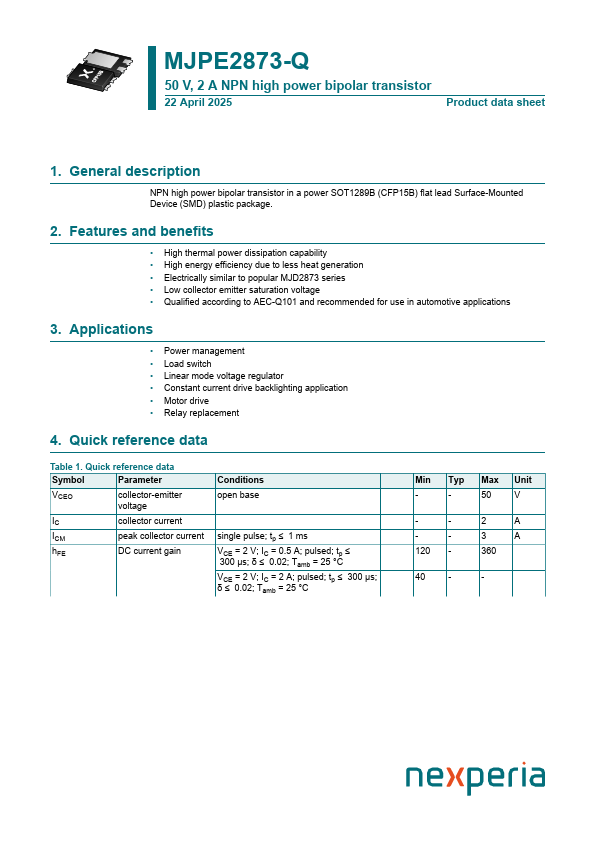

MJPE2873-Q 50 V, 2 A NPN high power bipolar transistor 22 April 2025 Product data sheet 1. General description NPN high power bipolar transistor in a power SOT1289B (CFP15B) flat lead Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • High thermal power dissipation capability • High energy efficiency due to less heat generation • Electrically similar to popular MJD2873 series • Low collector emitter saturation voltage • Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications • Power management • Load switch • Linear mode voltage regulator • Constant current drive backlighting application • Motor drive • Relay replacement 4. Quick reference data Table 1.
