MJPE31C 100V 3A NPN high power bipolar transistor

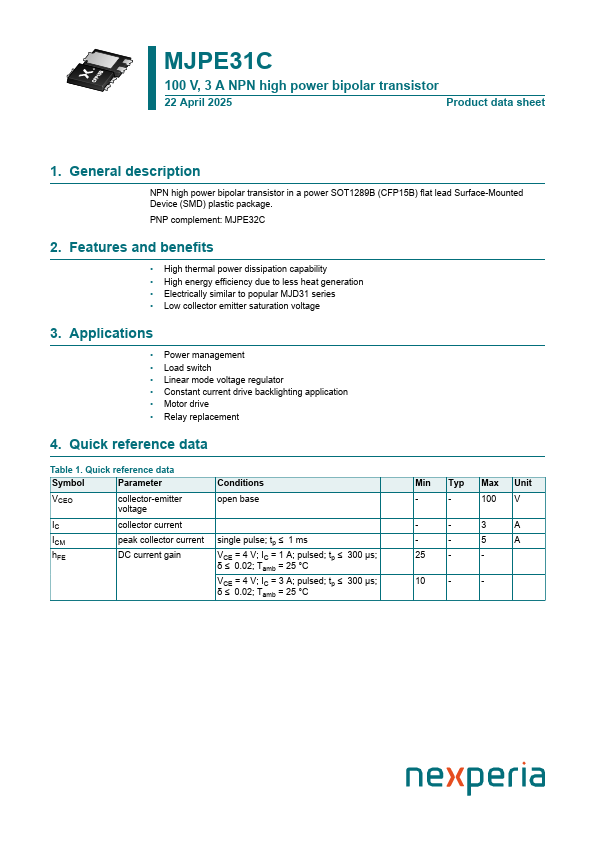

📥 Download Datasheet  Datasheet Preview Page 1

Description

MJPE31C 100 V, 3 A NPN high power bipolar transistor 22 April 2025 Product data sheet 1.General .
NPN high power bipolar transistor in a power SOT1289B (CFP15B) flat lead Surface-Mounted Device (SMD) plastic package.

📥 Download Datasheet

Preview of MJPE31C PDF

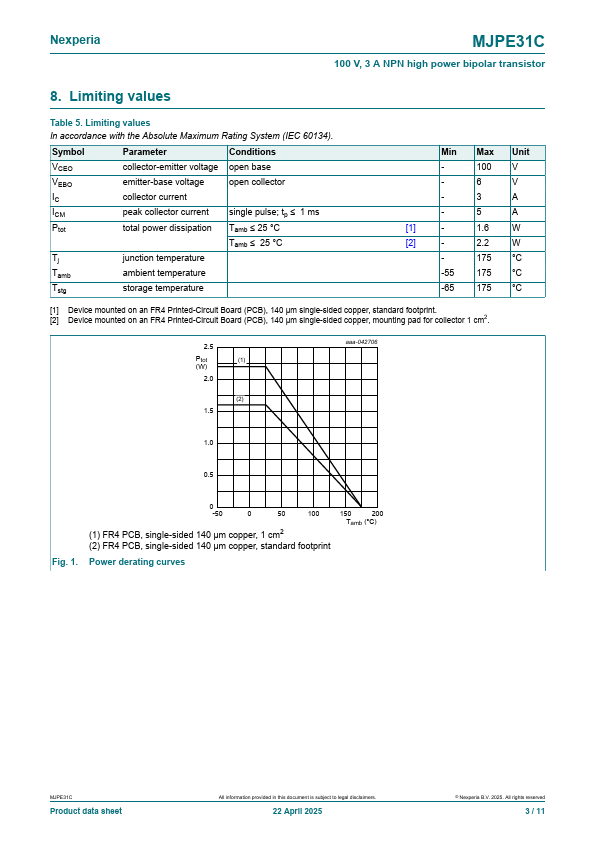

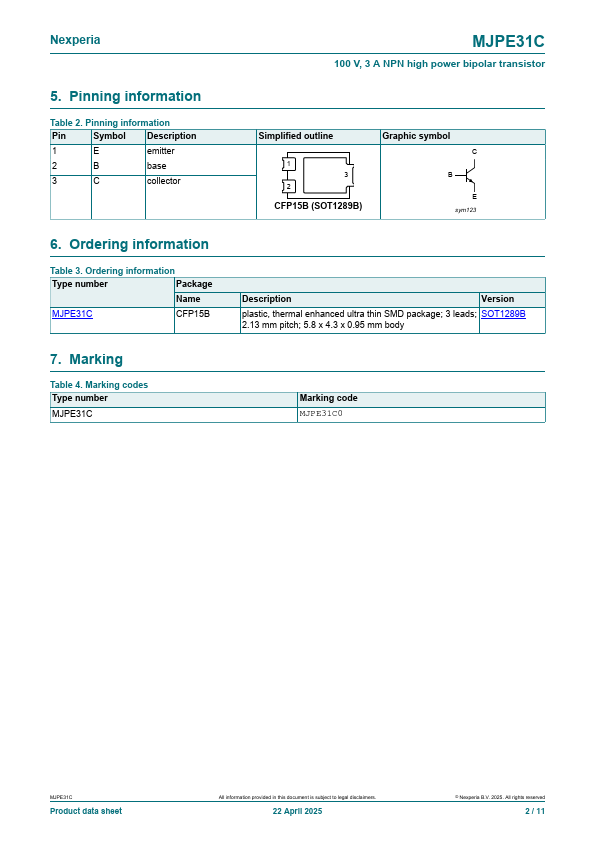

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MJPE31C
Manufacturer
nexperia ↗
File Size
271.84 KB
Datasheet
MJPE31C-nexperia.pdf
Description
100V 3A NPN high power bipolar transistor

Features

* High thermal power dissipation capability
* High energy efficiency due to less heat generation
* Electrically similar to popular MJD31 series

Applications

* Power management
* Load switch
* Linear mode voltage regulator
* Constant current drive backlighting application
* Motor drive
* Relay replacement 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter vol
