NEX81801DA Datasheet - nexperia

Adaptive Synchronous Rectifier Controller

NEX81801DA Features

* Supports DCM, CCM, QR operation

* Supports up to 800 kHz switching frequency

* Standard and logic level MOSFET driving capability

* Wide output range down to 0 V with 2-channel VCC supply

* No need for auxiliary winding for high-side or low- side rectificati

NEX81801DA General Description

The NEX81801DA and NEX81802DA (NEX81801/2DA) are high performance synchronous rectification controllers used in switching mode power supplies. It supports operation in Discontinuous Conduction Mode (DCM), Continuous Conduction Mode (CCM) and quasi-resonant flyback converters. The NEX81801/2DA regula.

NEX81801DA Datasheet (801.79 KB)

NEX81801DA Datasheet Preview — Preview of NEX81801DA PDF

Datasheet Details

Part number:

NEX81801DA

Manufacturer:

nexperia ↗

File Size:

801.79 KB

Description:

Adaptive synchronous rectifier controller.

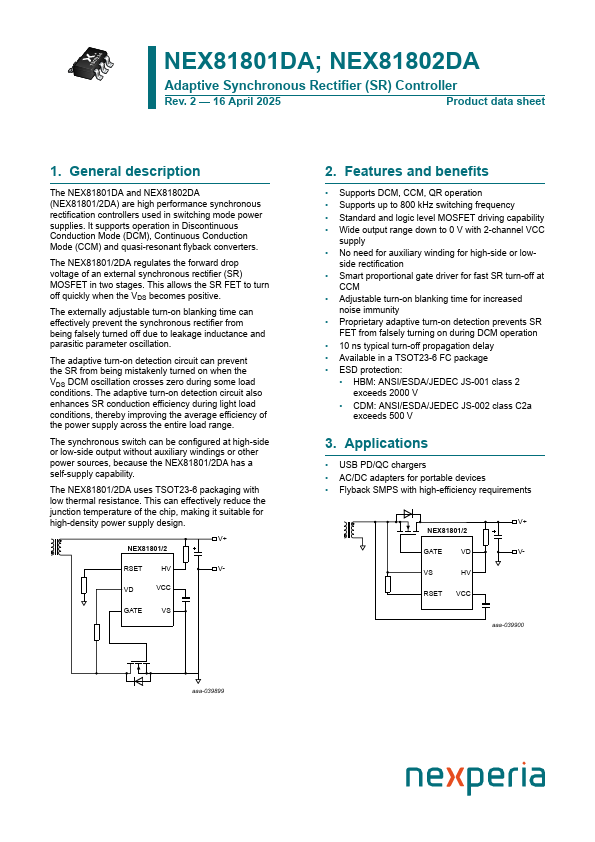

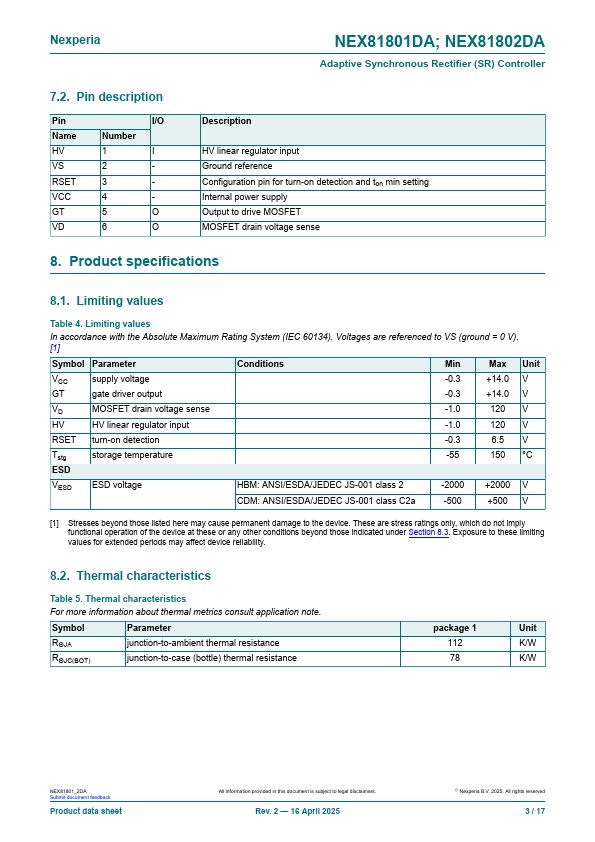

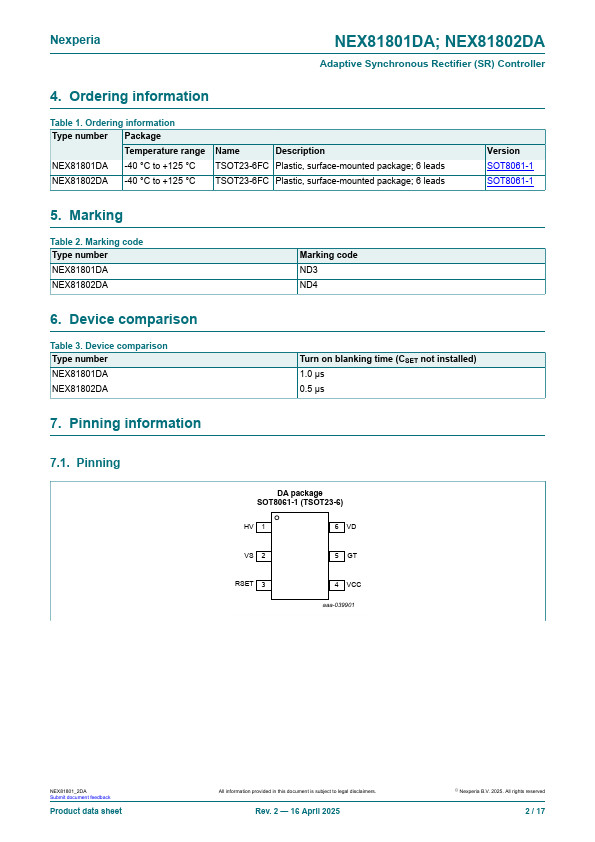

TSOT23-6 NEX81801DA; NEX81802DA Adaptive Synchronous Rectifier (SR) Controller Rev. 2 16 April 2025 Product data sheet 1. General descr.
