Wide Vcc range quasi-resonant flyback controller

NEX80601DA Features

* Wide VCC range (10 V-83 V) supports PD/PPS

* Direct GaN driver

* Valley switching operation in QR/DCM/PFM

* Burst Mode with ultra-low operation current in light load and no load

* 130 kHz or 170 kHz maximum frequency options

* Internal Soft Start (SS

NEX80601DA General Description

The NEX806 device series (NEX806xx) are high frequency quasi-resonant PWM controllers implemented with peak current mode control. As the load changes, the NEX806 device automatically switches mode between Quasi-Resonant (QR) mode, Discontinuous Conduction Mode (DCM) and Pulse Frequency Modulation (P.

NEX80601DA Datasheet (367.85 KB)

NEX80601DA Datasheet Preview — Preview of NEX80601DA PDF

Datasheet Details

Part number:

NEX80601DA

Manufacturer:

nexperia ↗

File Size:

367.85 KB

Description:

Wide vcc range quasi-resonant flyback controller.

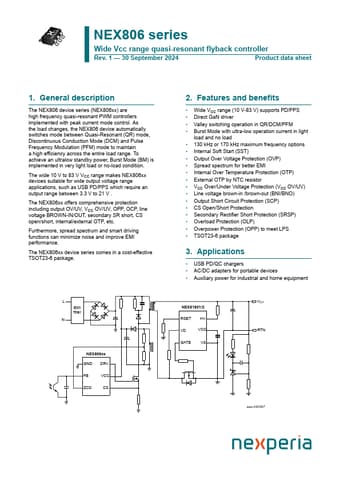

TSOT23-6FC NEX806 series Wide Vcc range quasi-resonant flyback controller Rev. 1 30 September 2024 Product data sheet 1. General descri.
