NEX80611DA, NEX80601DA - Wide Vcc range quasi-resonant flyback controller

nexperia

📥 Download Datasheet

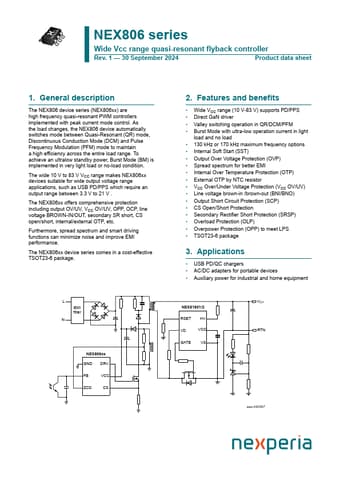

NEX80611DA Datasheet Preview — This datasheet PDF includes multiple part numbers: NEX80611DA, NEX80601DA. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NEX80611DA, NEX80601DA
Manufacturer	nexperia ↗
File Size	367.85 KB
Description	Wide Vcc range quasi-resonant flyback controller
Datasheet	NEX80601DA-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: NEX80611DA, NEX80601DA. Please refer to the document for exact specifications by model.

NEX80611DA Product details

Description

The NEX806 device series (NEX806xx) are high frequency quasi-resonant PWM controllers implemented with peak current mode control.

Features

Wide VCC range (10 V-83 V) supports PD/PPS.
Direct GaN driver.
Valley switching operation in QR/DCM/PFM.
Burst Mode with ultra-low operation current in light load and no load.
130 kHz or 170 kHz maximum frequency options.
Internal Soft Start (SST).
Output Over Voltage Protection (OVP).
Spread spectrum for better EMI.
Internal Over Temperature Protection (OTP).
External OTP by NTC resistor.
VCC Ove.
