NEX80806 Datasheet - nexperia

Adaptive multi-mode flyback controller

NEX80806 Features

* Multimode support CCM/QR/DCM/PFM

* Peak load mode

* Valley switching operation in QR/DCM/PFM

* Burst mode with ultra-low operation current in light load and no load conditions

* 65kHz maximum frequency

* Internal Soft Start (SST)

* Output ove

NEX80806 General Description

The NEX80806 is an intelligent multi-mode PWM controller implemented with peak current mode control. As the load changes, it automatically switches mode between Continuous Conduction Mode (CCM), QuasiResonant (QR) mode, Discontinuous Conduction Mode (DCM) and Pulse Frequency Modulation (PFM) mode to.

NEX80806 Datasheet (365.00 KB)

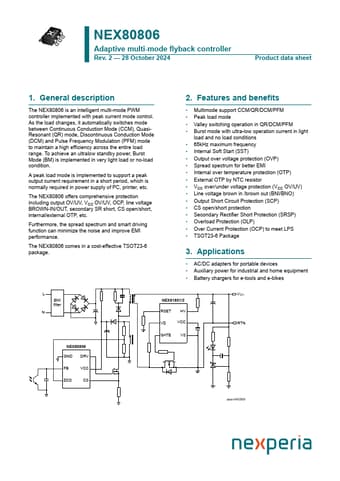

Preview of NEX80806 PDF

Datasheet Details

Part number:

NEX80806

Manufacturer:

nexperia ↗

File Size:

365.00 KB

Description:

Adaptive multi-mode flyback controller.
