NEX80809DA, NEX80801DA - Wide Vcc range multi-mode flyback controller

nexperia

📥 Download Datasheet

NEX80809DA Datasheet Preview — This datasheet PDF includes multiple part numbers: NEX80809DA, NEX80801DA. Please refer to the document for exact specifications by model.

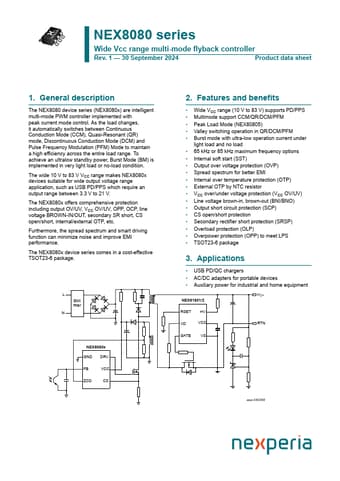

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NEX80809DA, NEX80801DA
Manufacturer	nexperia ↗
File Size	372.72 KB
Description	Wide Vcc range multi-mode flyback controller
Datasheet	NEX80801DA-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: NEX80809DA, NEX80801DA. Please refer to the document for exact specifications by model.

NEX80809DA Product details

Description

The NEX8080 device series (NEX8080x) are intelligent multi-mode PWM controller implemented with peak current mode control.

Features

Wide VCC range (10 V to 83 V) supports PD/PPS.
Multimode support CCM/QR/DCM/PFM.
Peak Load Mode (NEX80805).
Valley switching operation in QR/DCM/PFM.
Burst mode with ultra-low operation current under light load and no load.
65 kHz or 85 kHz maximum frequency options.
Internal soft start (SST).
Output over voltage protection (OVP).
Spread spectrum for better EMI.
Internal over temperature protection (OTP).
