NEX80806DA, NEX80806 - Adaptive multi-mode flyback controller

nexperia

📥 Download Datasheet

NEX80806DA Datasheet Preview — This datasheet PDF includes multiple part numbers: NEX80806DA, NEX80806. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

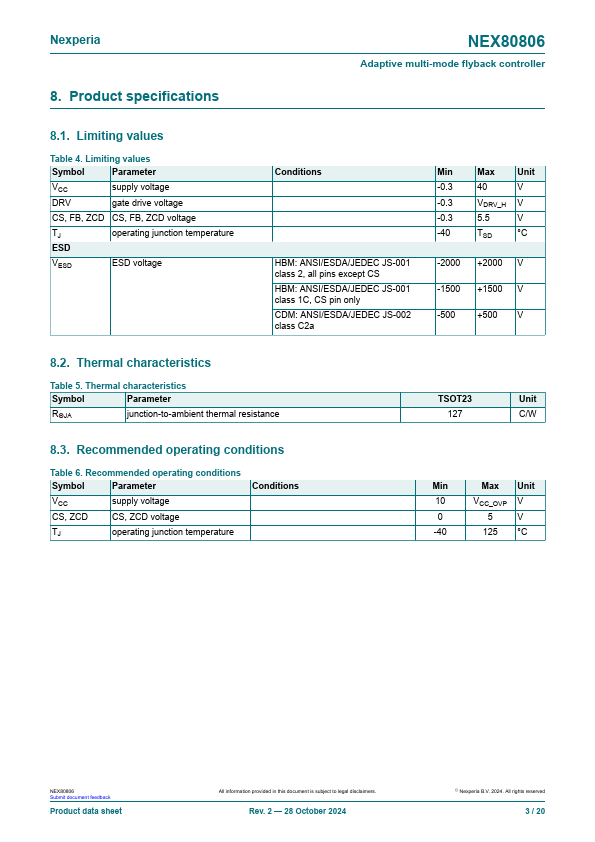

datasheet Preview Page 3

Datasheet Details

Part number	NEX80806DA, NEX80806
Manufacturer	nexperia ↗
File Size	365.00 KB
Description	Adaptive multi-mode flyback controller
Datasheet	NEX80806-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: NEX80806DA, NEX80806. Please refer to the document for exact specifications by model.

NEX80806DA Product details

Description

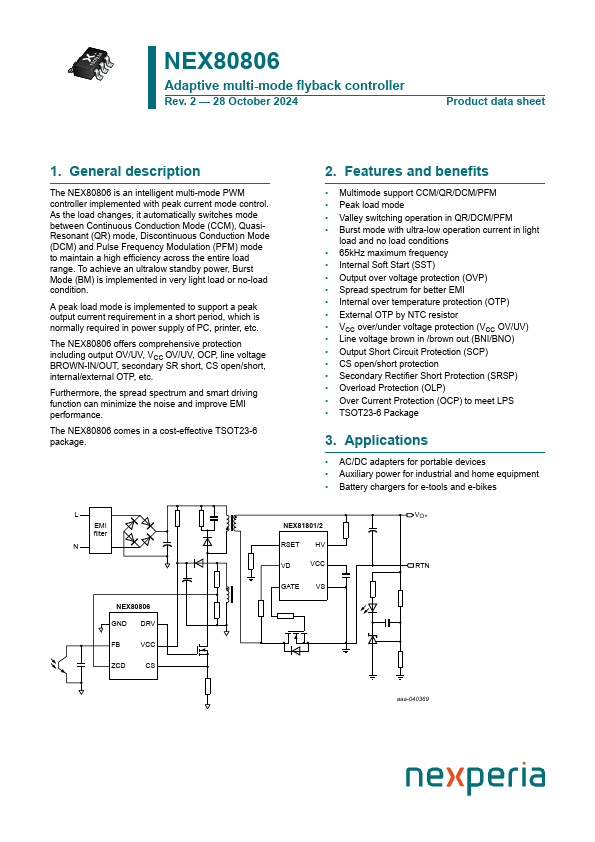

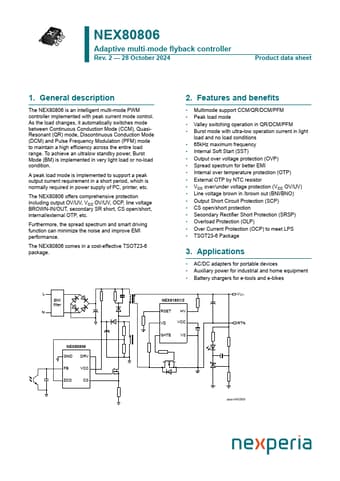

The NEX80806 is an intelligent multi-mode PWM controller implemented with peak current mode control.

Features

Multimode support CCM/QR/DCM/PFM.
Peak load mode.
Valley switching operation in QR/DCM/PFM.
Burst mode with ultra-low operation current in light load and no load conditions.
65kHz maximum frequency.
Internal Soft Start (SST).
Output over voltage protection (OVP).
Spread spectrum for better EMI.
Internal over temperature protection (OTP).
External OTP by NTC resistor.
VCC over/under voltage protect.
