NEX80805DA, NEX80801DA Wide Vcc range multi-mode flyback controller

nexperia

Description

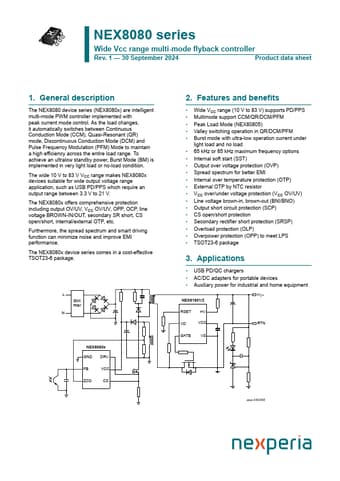

TSOT23-6FC NEX8080 series Wide Vcc range multi-mode flyback controller Rev.1 * 30 September 2024 Product data sheet 1.General descripti.
The NEX8080 device series (NEX8080x) are intelligent multi-mode PWM controller implemented with peak current mode control.

📥 Download Datasheet

NEX80805DA Datasheet Preview — This datasheet PDF includes multiple part numbers: NEX80805DA, NEX80801DA. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: NEX80805DA, NEX80801DA
Manufacturer: nexperia ↗
File Size: 372.72 KB
Datasheet: NEX80801DA-nexperia.pdf
Description: Wide Vcc range multi-mode flyback controller
Note: This datasheet PDF includes multiple part numbers: NEX80805DA, NEX80801DA.
Please refer to the document for exact specifications by model.

Features

* Wide VCC range (10 V to 83 V) supports PD/PPS
* Multimode support CCM/QR/DCM/PFM
* Peak Load Mode (NEX80805)
* Valley switching operation in QR/DCM/PFM
* Burst mode with ultra-low operation current under light load and no load
* 65 kHz or 85 kHz maxi

Applications

* USB PD/QC chargers
* AC/DC adapters for portable devices
* Auxiliary power for industrial and home equipment VO+ NEX81801/2 RSET HV VD VCC RTN GATE VS aaa-040368 Nexperia NEX8080 series Wide Vcc range multi-mode flyback controller 4. Ordering information Table 1.
