NSF030120D7A0 - N-channel SiC MOSFET

nexperia

📥 Download Datasheet

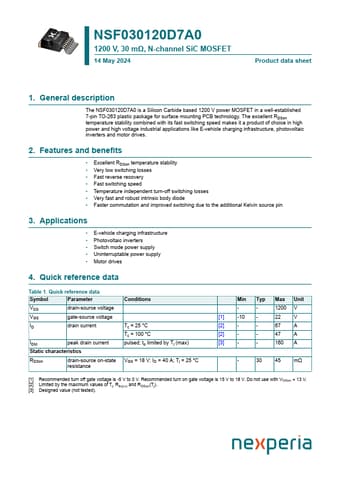

NSF030120D7A0 Datasheet Preview — Preview of NSF030120D7A0 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NSF030120D7A0
Manufacturer	nexperia ↗
File Size	1.32 MB
Description	N-channel SiC MOSFET
Datasheet	NSF030120D7A0-nexperia.pdf

NSF030120D7A0 Product details

Description

The NSF030120D7A0 is a Silicon Carbide based 1200 V power MOSFET in a well-established 7-pin TO-263 plastic package for surface mounting PCB technology.

Features

Excellent RDSon temperature stability.
Very low switching losses.
Fast reverse recovery.
Fast switching speed.
Temperature independent turn-off switching losses.
Very fast and robust intrinsic body diode.
Faster commutation and improved switching due to the additional Kelvin source pin 3.
