NSF040120L4A1

1200V N-channel SiC MOSFET

nexperia

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Nexperia	NSF040120L4A1Q	NSF040120L4A1/SOT8071/TO247-4L	DigiKey	0	450 units	$11.87	🛒 Buy Now

NSF040120L4A1 Datasheet (1.21 MB)

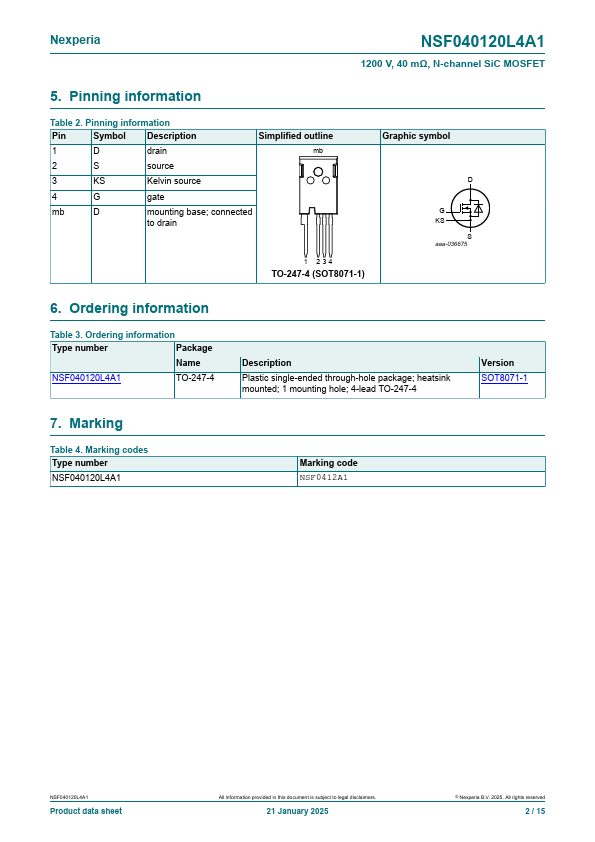

NSF040120L4A1 Datasheet Preview — Preview of NSF040120L4A1 PDF Datasheet

Datasheet Details

Part number:

NSF040120L4A1

Manufacturer:

nexperia ↗

File Size:

1.21 MB

Description:

1200v n-channel sic mosfet

NSF040120L4A1 Features

* Excellent RDSon temperature stability

* Very low switching losses

* Fast reverse recovery

* Fast switching speed

* Temperature independent turn-off switching losses

* Very fast and robust intrinsic body diode

* Faster commutation and improved

NSF040120L4A1 General Description

The NSF040120L4A1 is a Silicon Carbide based 1200 V power MOSFET in a well-established 4-pin TO-247 plastic package for through hole PCB mounting technology. The excellent RDSon temperature stability combined with its fast switching speed makes it a product of choice in high power and high voltage i.
