PBSS4160PANS-Q - 60V 1A NPN/NPN low VCEsat transistor

Name: PBSS4160PANS-Q
SKU: PBSS4160PANS-Q-1593346

nexperia

📥 Download Datasheet

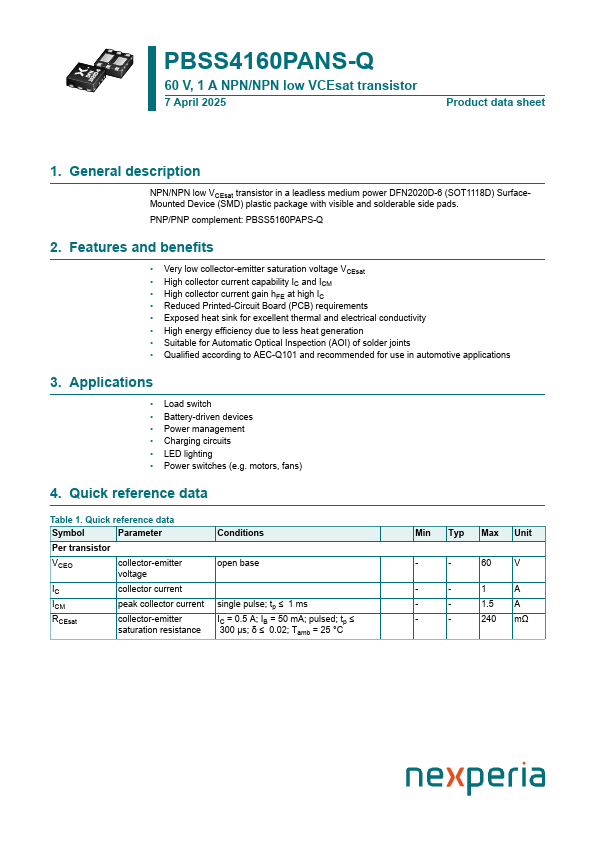

PBSS4160PANS-Q Datasheet Preview — Preview of PBSS4160PANS-Q PDF

Datasheet Details

Part number	PBSS4160PANS-Q
Manufacturer	nexperia
File Size	300.79 KB
Description	60V 1A NPN/NPN low VCEsat transistor
Datasheet	PBSS4160PANS-Q-nexperia.pdf

PBSS4160PANS-Q Product details

Description

NPN/NPN low VCEsat transistor in a leadless medium power DFN2020D-6 (SOT1118D) SurfaceMounted Device (SMD) plastic package with visible and solderable side pads.

Features

Very low collector-emitter saturation voltage VCEsat.
High collector current capability IC and ICM.
High collector current gain hFE at high IC.
Reduced Printed-Circuit Board (PCB) requirements.
Exposed heat sink for excellent thermal and electrical conductivity.
High energy efficiency due to less heat generation.
Suitable for Automatic Optical Inspection (AOI) of solder joints.
Qualified according to AEC-Q101 and recommende.
