PESD12VS1ULS Datasheet, Diode, nexperia

PESD12VS1ULS Features

  • Diode
  • ESD protection of one line
  • Ultra small SMD plastic package
  • Side wettable flanks
  • Low clamping voltage: VCL = 19 V
  • ESD protection up to 3

PDF File Details

Part number:

PESD12VS1ULS

Manufacturer:

nexperia ↗

File Size:

223.54kb

Download:

📄 Datasheet

Description:

Unidirectional esd protection diode. Unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and o

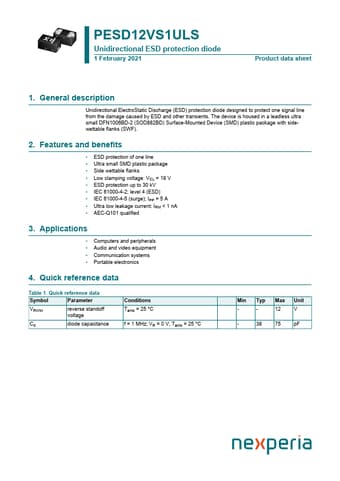

Datasheet Preview: PESD12VS1ULS 📥 Download PDF (223.54kb)
Page 2 of PESD12VS1ULS Page 3 of PESD12VS1ULS

PESD12VS1ULS Application

  • Applications
  • Computers and peripherals
  • Audio and video equipment
  • Communication systems
  • Portable electronics
