PESD12VS2UQ, PESD5V0S2UQ Datasheet - NXP

PESD12VS2UQ (PESDxS2UQ) Double Esd Protection Diode

Uni-directional double ESD protection diodes in a SOT663 plastic package. Designed to protect up to two transmission or data lines from ElectroStatic Discharge (ESD) damage. MARKING TYPE NUMBER PESD3V3S2UQ PESD5V0S2UQ PESD12VS2UQ PESD15VS2UQ PESD24VS2UQ Note 1. * = p : made in Hong Kong. * =.

PESD12VS2UQ Features

* Uni-directional ESD protection of up to two lines

* Max. peak pulse power: Ppp = 150 W at tp = 8/20 µs

* Low clamping voltage: V(CL)R = 20 V at Ipp = 15 A

* Low reverse leakage current: IRM < 1 nA

* ESD protection > 30 kV

* IEC 61000-4-2; level 4 (ES

PESD5V0S2UQ_PhilipsSemiconductors.pdf

This datasheet PDF includes multiple part numbers: PESD12VS2UQ, PESD5V0S2UQ. Please refer to the document for exact specifications by model.

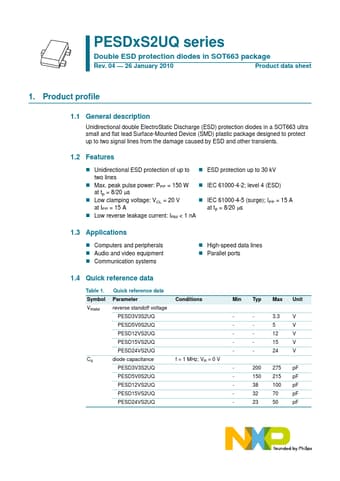

PESD12VS2UQ Datasheet Preview Page 2 PESD12VS2UQ Datasheet Preview Page 3
