PESD12VS2UT

Double ESD protection diodes

PESD12VS2UT Features

* Uni-directional ESD protection of up to two lines

* Max. peak pulse power: Ppp = 330 W at tp = 8/20 µs

* Low clamping voltage: V(CL)R = 20 V at Ipp = 18 A

* Ultra-low reverse leakage current: IRM < 700 nA

* ESD protection > 23 kV

* IEC 61000-4-2; lev

PESD12VS2UT General Description

cathode 1 cathode 2 common anode DESCRIPTION Uni-directional double ESD protection diodes in a SOT23 plastic package. Designed to protect up to two transmission or data lines from ElectroStatic Discharge (ESD) damage. MARKING TYPE NUMBER PESD3V3S2UT PESD5V2S2UT PESD12VS2UT PESD15VS2UT PESD24VS2UT.

PESD12VS2UT Datasheet (132.66 KB)

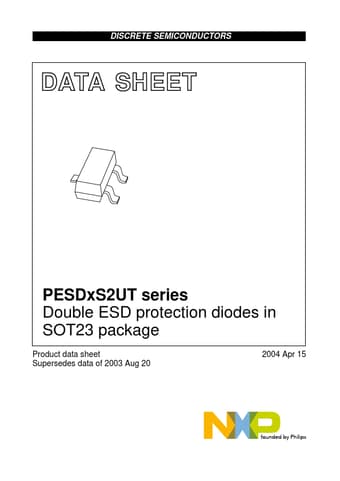

Preview of PESD12VS2UT PDF

Datasheet Details

Part number:

PESD12VS2UT

Manufacturer:

NXP ↗

File Size:

132.66 KB

Description:

Double esd protection diodes.
DISCRETE SEMICONDUCTORS DATA SHEET PESDxS2UT series Double ESD protection diodes in SOT23 package Product data sheet Supersedes data of 2003 Aug 20 .
