PESD2CANFD27V-T - ESD protection

nexperia

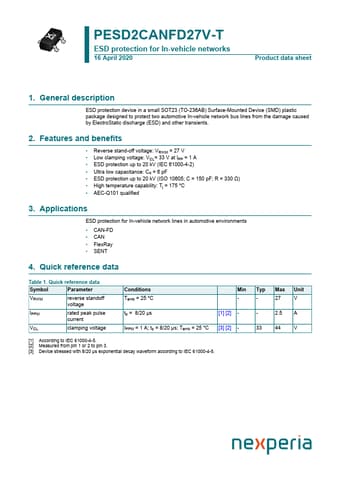

PESD2CANFD27V-T Datasheet Preview — Preview of PESD2CANFD27V-T PDF

Datasheet Details

Part number	PESD2CANFD27V-T
Manufacturer	nexperia ↗
File Size	282.43 KB
Description	ESD protection
Datasheet	PESD2CANFD27V-T-nexperia.pdf

PESD2CANFD27V-T Product details

Description

ESD protection device in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package designed to protect two automotive In-vehicle network bus lines from the damage caused by ElectroStatic discharge (ESD) and other transients.

Features

Reverse stand-off voltage: VRWM = 27 V.
Low clamping voltage: VCL= 33 V at IPP = 1 A.
ESD protection up to 20 kV (IEC 61000-4-2).
Ultra low capacitance: Cd = 6 pF.
ESD protection up to 20 kV (ISO 10605; C = 150 pF; R = 330 Ω).
High temperature capability: Tj = 175 °C.
AEC-Q101 qualified 3.
