PESD2CANFD27VT-Q, ESD protection

PESD2CANFD27VT-Q ESD protection for in-vehicle networks 12 April 2023 Product data sheet 1.General .
ESD protection device in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package, designed to protect two automotive in-vehicle network.

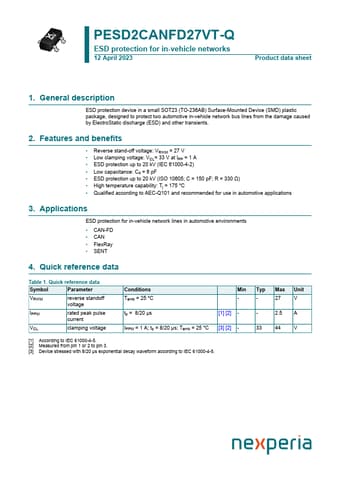

datasheet Preview Page 1 from Datasheet4u.com

PESD2CANFD27VT-Q-nexperia.pdf

PESD2CANFD27VT-Q Datasheet Preview — Preview of PESD2CANFD27VT-Q PDF

Datasheet Details

Part number:

PESD2CANFD27VT-Q

Manufacturer:

nexperia ↗

File Size:

287.42 KB

Description:

ESD protection

Features

* Reverse stand-off voltage: VRWM = 27 V
* Low clamping voltage: VCL= 33 V at IPP = 1 A
* ESD protection up to 20 kV (IEC 61000-4-2)
* Low capacitance: Cd = 6 pF
* ESD protection up to 20 kV (ISO 10605; C = 150 pF; R = 330 Ω)
* High temperature capabil

Applications

* 3. Applications ESD protection for in-vehicle network lines in automotive environments
* CAN-FD
* CAN
* FlexRay
* SENT 4. Quick reference data Table 1. Quick reference data Symbol Parameter VRWM reverse standoff voltage IPPM rated peak pulse current VCL cl
