PESD2CANFD54VT-Q - ESD protection

nexperia

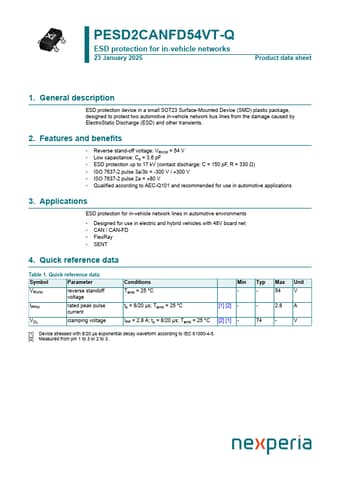

PESD2CANFD54VT-Q Datasheet Preview — Preview of PESD2CANFD54VT-Q PDF

Datasheet Details

Part number	PESD2CANFD54VT-Q
Manufacturer	nexperia ↗
File Size	215.91 KB
Description	ESD protection
Datasheet	PESD2CANFD54VT-Q-nexperia.pdf

PESD2CANFD54VT-Q Product details

Description

ESD protection device in a small SOT23 Surface-Mounted Device (SMD) plastic package, designed to protect two automotive in-vehicle network bus lines from the damage caused by ElectroStatic Discharge (ESD) and other transients.

Features

Reverse stand-off voltage: VRWM = 54 V.
Low capacitance: Cd = 3.6 pF.
ESD protection up to 17 kV (contact discharge; C = 150 pF, R = 330 Ω).
ISO 7637-2 pulse 3a/3b = -300 V / +300 V.
ISO 7637-2 pulse 2a = +80 V.
Qualified according to AEC-Q101 and recommended for use in automotive.
