PMBT4401 NPN switching transistor

PMBT4401 Description

PMBT4401 NPN switching transistor 1 October 2025 Product data sheet 1.General .
NPN switching transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package. H.

PMBT4401 Features

* High current (max. 600 mA)

PMBT4401 Applications

* Industrial and consumer switching applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = 1 V; IC = 150 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C

📥 Download Datasheet

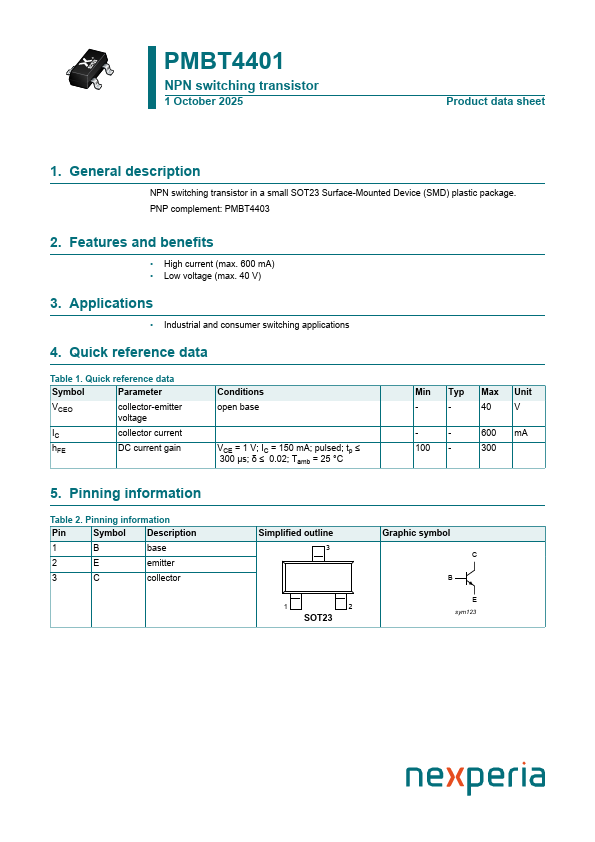

Preview of PMBT4401 PDF

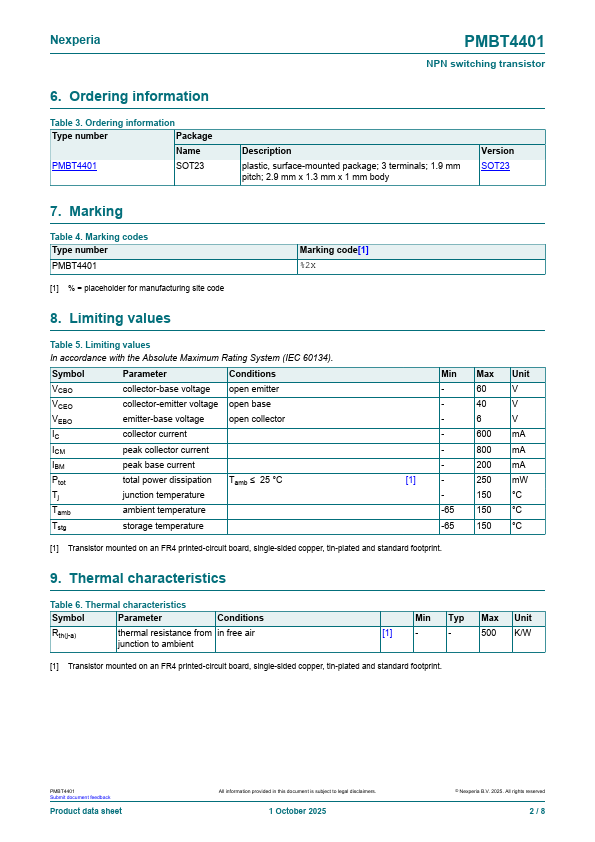

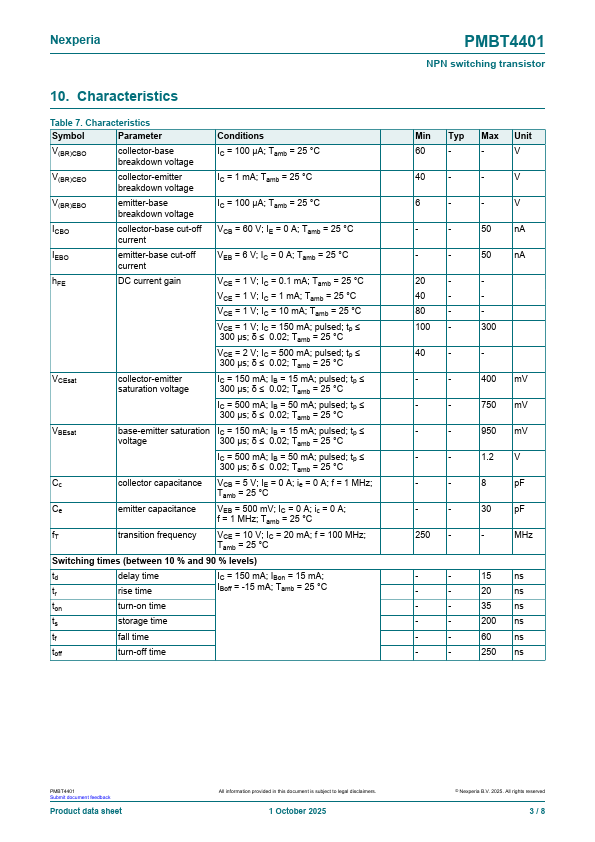

datasheet Preview Page 2 datasheet Preview Page 3
