PMEG3005EL, PMEG3005EB - MEGA Schottky barrier rectifiers

PMEG3005EL Description

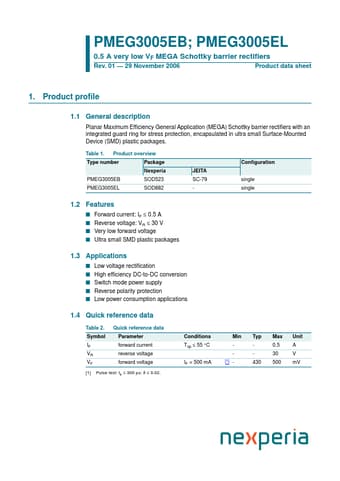

PMEG3005EB; PMEG3005EL 0.5 A very low VF MEGA Schottky barrier rectifiers Rev.01 * 29 November 2006 Product data sheet 1.Product profile .
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in ul.

PMEG3005EL Applications

* I Low voltage rectification I High efficiency DC-to-DC conversion I Switch mode power supply I Reverse polarity protection I Low power consumption applications 1.4 Quick reference data Table 2. Symbol IF VR VF Quick reference data Parameter forward current reverse voltage forward voltage [1] Pulse
