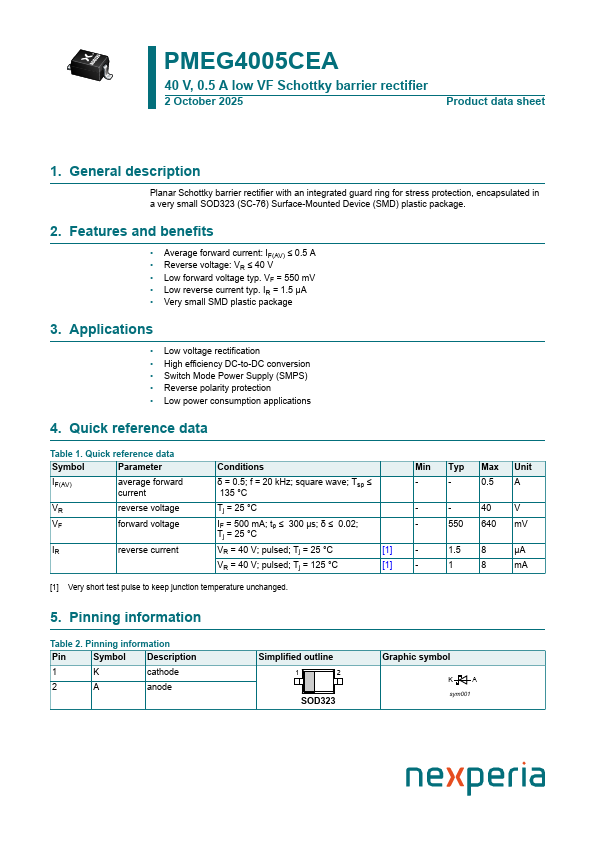

PMEG4005CEA Datasheet, Rectifier, nexperia

PMEG4005CEA Features

• Rectifier
• Average forward current: IF(AV) ≤ 0.5 A
• Reverse voltage: VR ≤ 40 V
• Low forward voltage typ. VF = 550 mV
• Low reverse current typ. IR = 1.5 µA

PDF File Details

Part number:

PMEG4005CEA

Manufacturer:

nexperia ↗

File Size:

690.58kb

Download:

📄 Datasheet

Description:

Mega schottky barrier rectifier. Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection,

PMEG4005CEA Application

• Applications
• Low voltage rectification
• High efficiency DC-to-DC conversion
• Switch Mode Power Supply (SMPS)
• R
