PMST3904 - NPN switching transistor

Product Overview

nexperia

📥 Download Datasheet

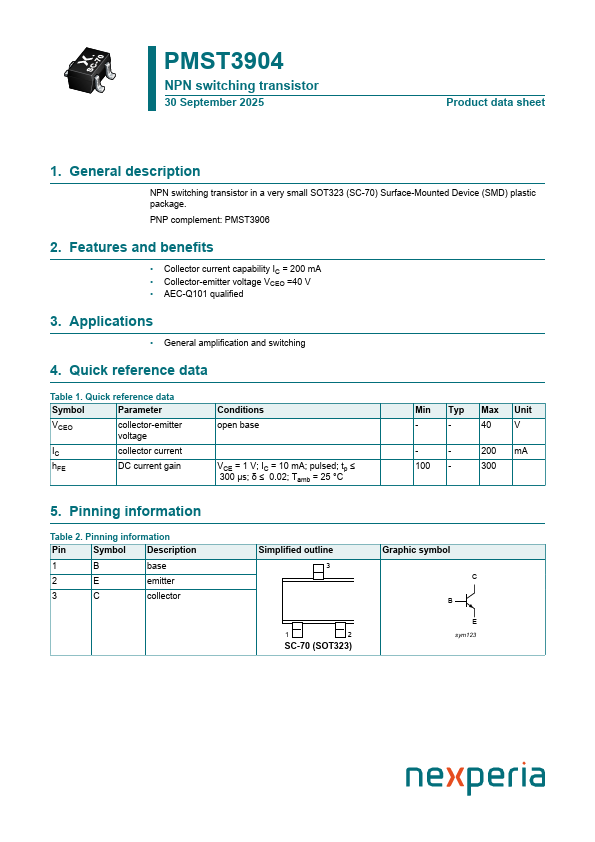

PMST3904 NPN switching transistor by nexperia - Datasheet Preview — Datasheet preview – PMST3904

Datasheet Details

Part number	PMST3904
Manufacturer	nexperia
File Size	201.28 KB
Description	NPN switching transistor
Datasheet	PMST3904 Datasheet

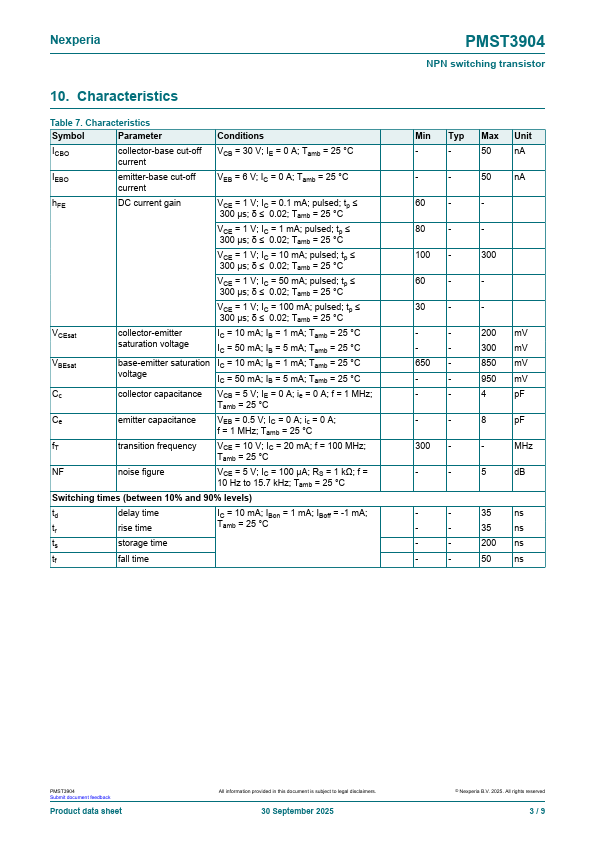

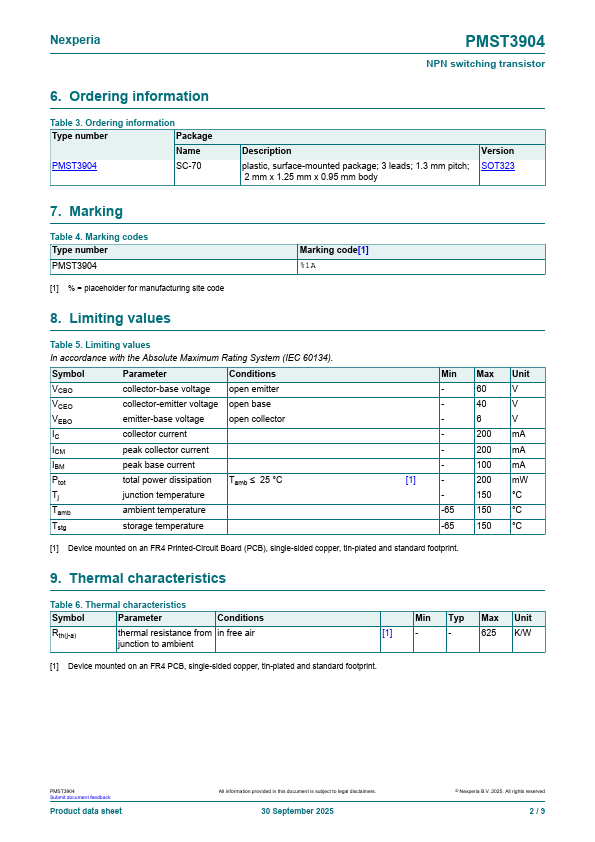

Additional preview pages of the PMST3904 datasheet.

Product details

Description

NPN switching transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

Features

Collector current capability IC = 200 mA.
Collector-emitter voltage VCEO =40 V.
AEC-Q101 qualified 3.
