PMST4401-Q NPN switching transistor

📥 Download Datasheet Datasheet Preview Page 1

Description

PMST4401-Q NPN switching transistor 15 May 2025 Product data sheet 1.General .
NPN switching transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. High current.

📥 Download Datasheet

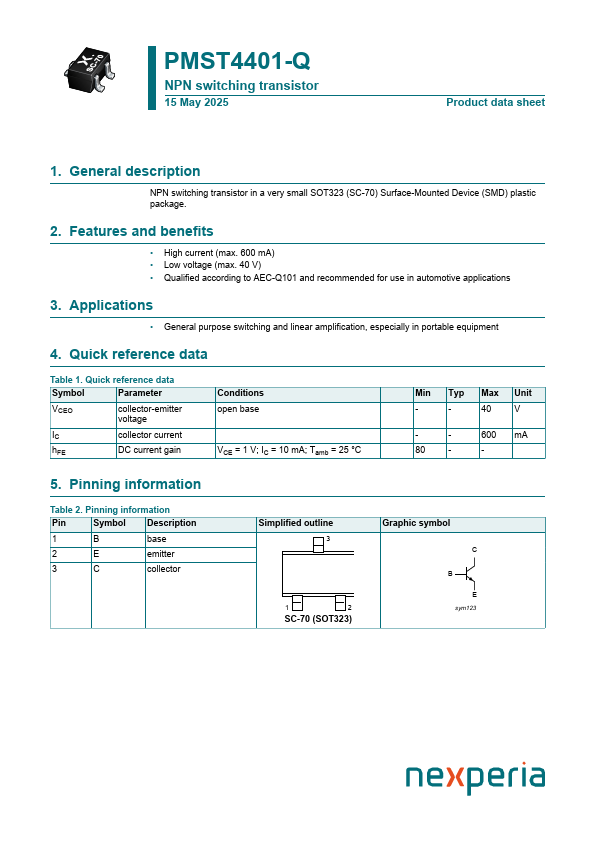

Preview of PMST4401-Q PDF

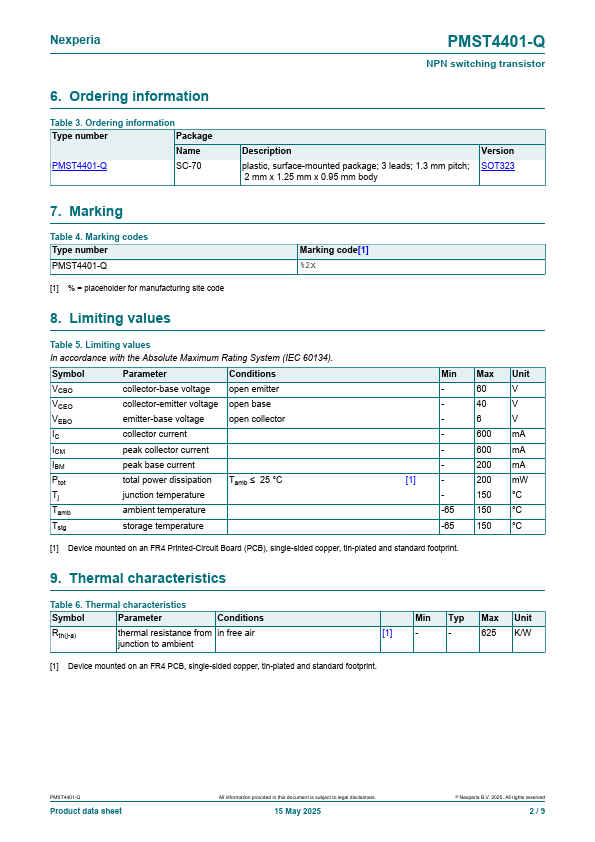

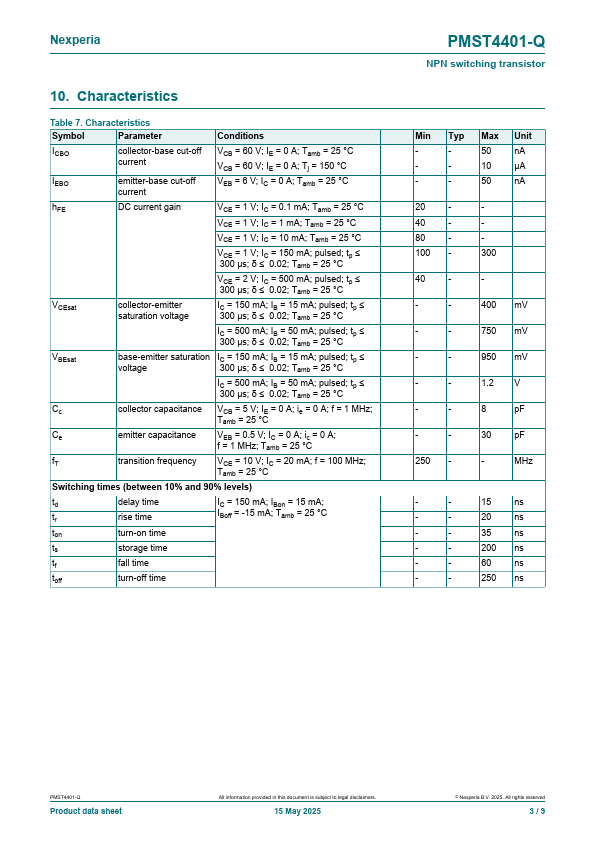

datasheet Preview Page 2 datasheet Preview Page 3

Features

* High current (max. 600 mA)
* Low voltage (max. 40 V)

Applications

* 3. Applications
* General purpose switching and linear amplification, especially in portable equipment 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = 1 V; IC
