PUMZ2-Q NPN/PNP general-purpose double transistor

📥 Download Datasheet Datasheet Preview Page 1

Description

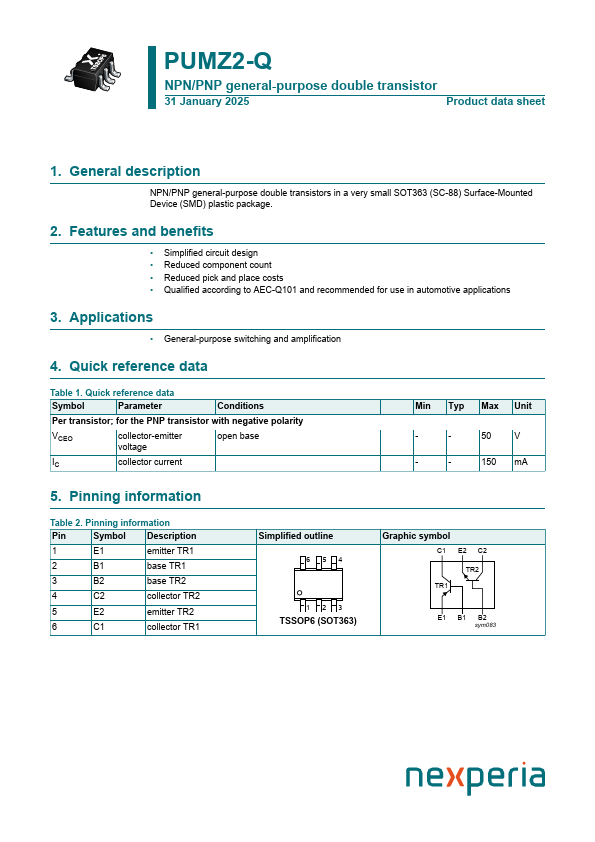

PUMZ2-Q NPN/PNP general-purpose double transistor 31 January 2025 Product data sheet 1.General .
NPN/PNP general-purpose double transistors in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package.

📥 Download Datasheet

Preview of PUMZ2-Q PDF

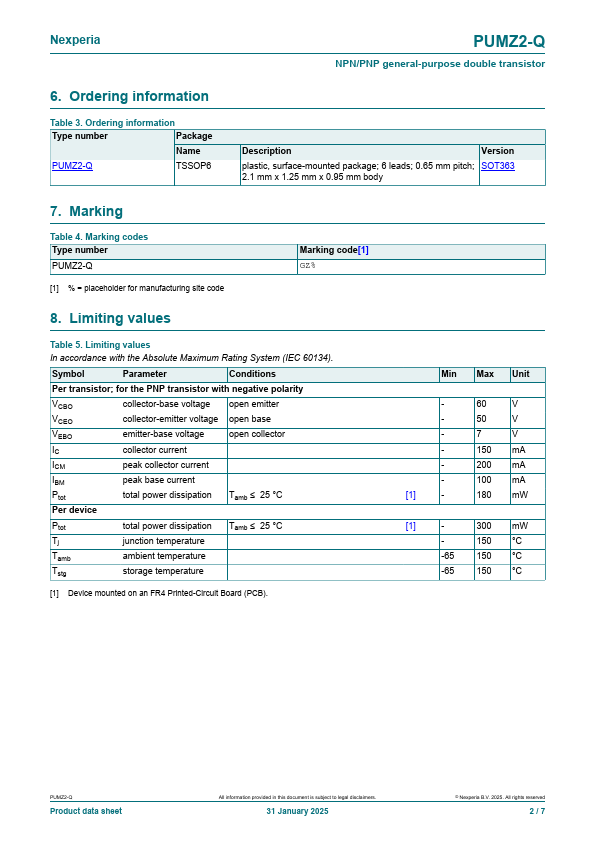

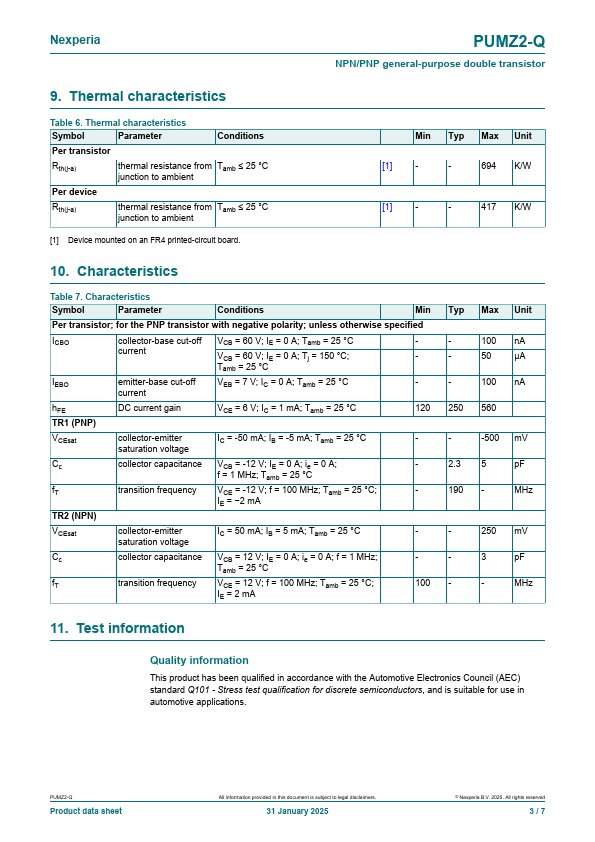

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PUMZ2-Q
Manufacturer
nexperia ↗
File Size
186.18 KB
Datasheet
PUMZ2-Q-nexperia.pdf
Description
NPN/PNP general-purpose double transistor

Features

* Simplified circuit design
* Reduced component count
* Reduced pick and place costs

Applications

* 3. Applications
* General-purpose switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Per transistor; for the PNP transistor with negative polarity VCEO collector-emitter voltage open base IC collector current Min Typ Max
