RB751CS40-Q - Schottky barrier diode

RB751CS40-Q Description

RB751CS40-Q Schottky barrier diode 23 April 2025 Product data sheet 1.General .
Planar Schottky barrier diode with an integrated guard ring for stress protection, in a leadless ultra small DFN1006-2 (SOD882) Surface-Mounted Device.

RB751CS40-Q Features

* Low forward voltage
* Low capacitance

RB751CS40-Q Applications

* 3. Applications
* Ultra high-speed switching
* Voltage clamping
* Line termination
* Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF forward current VR reverse voltage VF forward voltage Conditions Tj =

📥 Download Datasheet

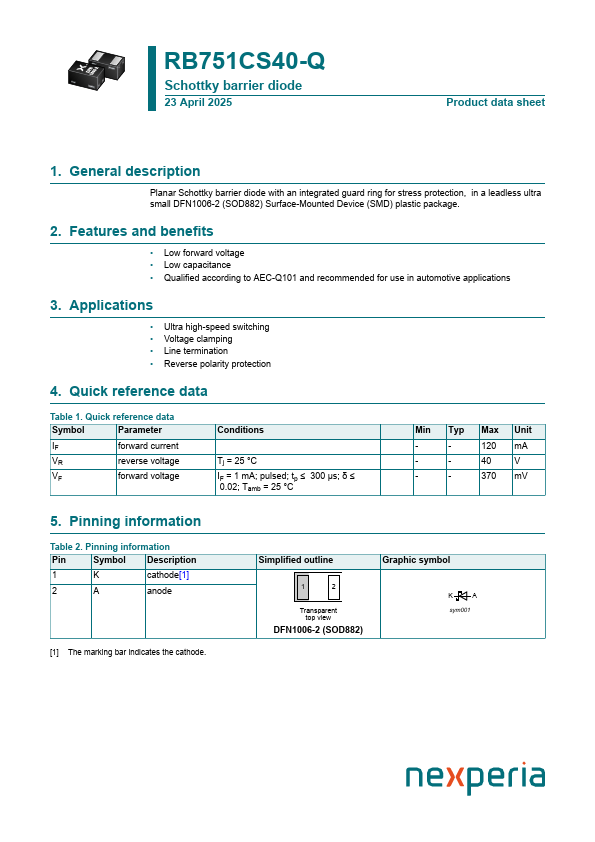

Preview of RB751CS40-Q PDF

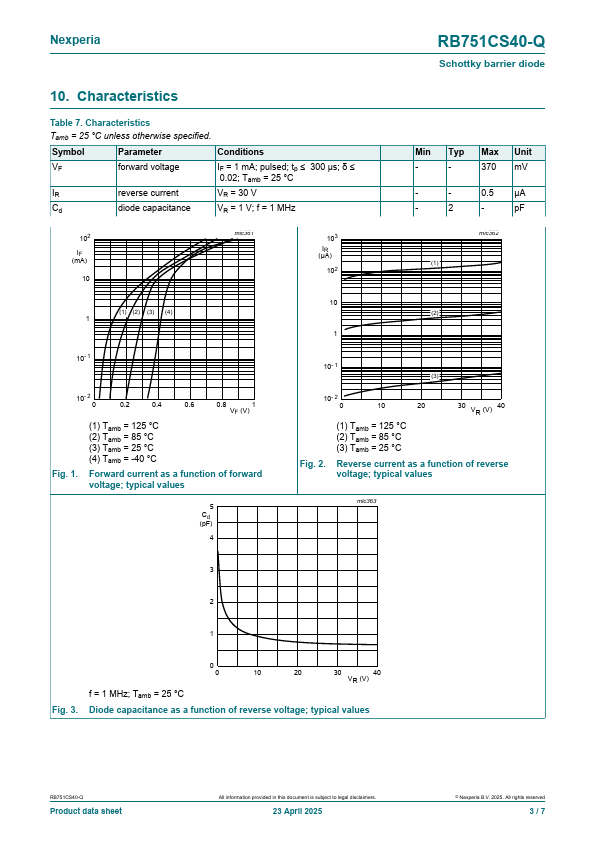

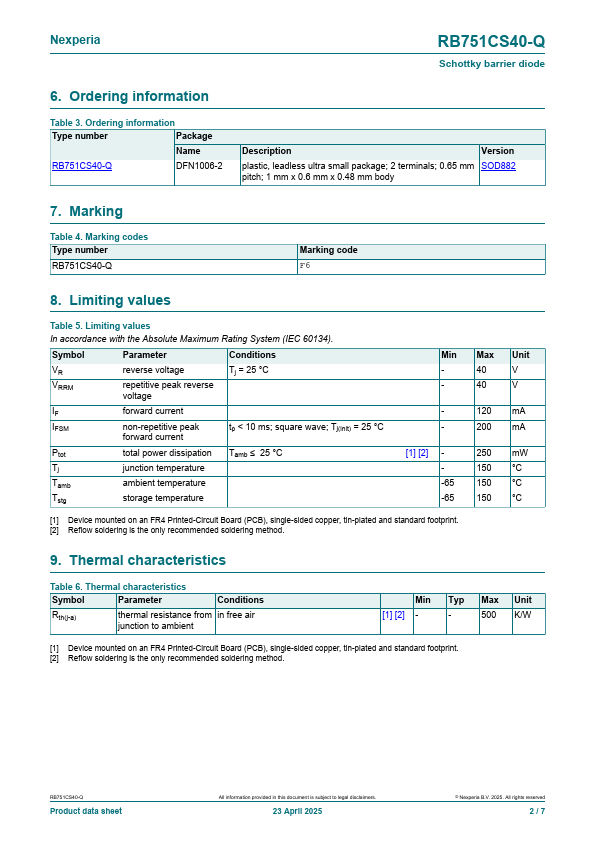

datasheet Preview Page 2 datasheet Preview Page 3
