NAU82011WG

2.9 W Mono Filter-Free Class-D Audio Amplifier

NAU82011WG Features

* like 91% efficiency, low quiescent current (i.e. 1.2mA at 3.6V) and superior EMI performance. It has the ability to configure the inputs in either single-ended or differential mode. NAU82011WG is available in MSOP-8 package. Key Features

* Low Quiescent Current:

* 1.2mA at 3.6V

NAU82011WG General Description

The NAU82011WG is a mono high efficiency filter-free Class-D audio amplifier with variable gain, which is capable of driving a 4Ω load with up to 2.9W output power. This device provides chip enable pin with extremely low standby current and fast start-up time of 4ms. The NAU82011WG is ideal for the .

NAU82011WG Datasheet (401.38 KB)

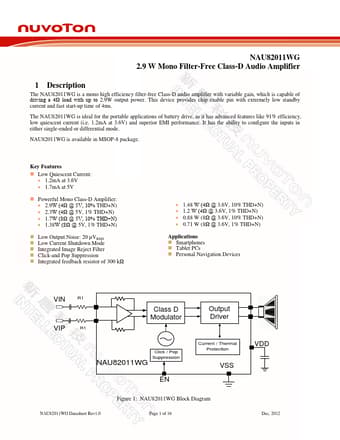

Preview of NAU82011WG PDF

Datasheet Details

Part number:

NAU82011WG

Manufacturer:

nuvoton

File Size:

401.38 KB

Description:

2.9 w mono filter-free class-d audio amplifier.
