NAU82039 Datasheet - nuvoton

3.2W Mono Filter-Free Class-D Audio Amplifier

NAU82039 Features

* like 90dB PSRR at 217Hz, 93% efficiency, ultra low quiescent current (i.e. 1.25mA at 3.6V) and superior EMI performance. It has the ability to configure the inputs in either single-ended or differential mode. NAU82039 is available in Miniature WCSP-9 (1.21mm x 1.23mm in 0.4mm pitch) package. Key Fea

NAU82039 General Description

The NAU82039 is a mono high efficiency filter-free Class-D audio amplifier with 12dB of fixed gain, which is capable of driving a 4Ω load with up to 3.2W output power. This device provides chip enable pin with extremely low standby current and fast start-up time of 4ms. The NAU82039 is ideal for the.

NAU82039 Datasheet (783.04 KB)

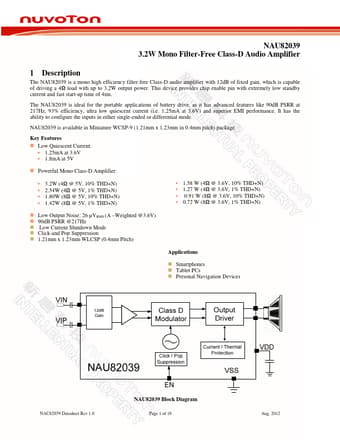

NAU82039 Datasheet Preview — Preview of NAU82039 PDF

Datasheet Details

Part number:

NAU82039

Manufacturer:

nuvoton

File Size:

783.04 KB

Description:

3.2w mono filter-free class-d audio amplifier.
