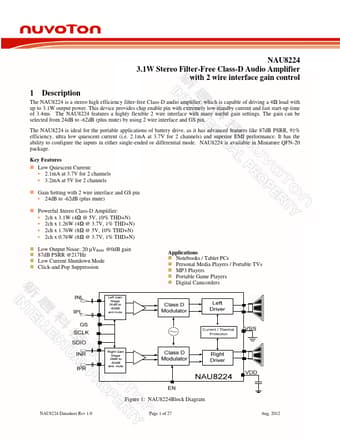

NAU8224 Datasheet, Amplifier, nuvoton

NAU8224 Features

• Amplifier a highly flexible 2 wire interface with many useful gain settings. The gain can be selected from 24dB to -62dB (plus mute) by using 2 wire interface and GS pin. The NAU8224 is ideal for

PDF File Details

Part number:

NAU8224

Manufacturer:

nuvoton

File Size:

754.11kb

Download:

📄 Datasheet

Description:

3.1w stereo filter-free class-d audio amplifier. The NAU8224 is a stereo high efficiency filter-free Class-D audio amplifier, which is capable of driving a 4Ω load with up to 3.1W ou

NAU8224 Application

• Applications of battery drive, as it has advanced features like 87dB PSRR, 91% efficiency, ultra low quiescent current (i.e. 2.1mA at 3.7V for 2 cha
