BAV99L - Switching Diode

Datasheet Summary

Description

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

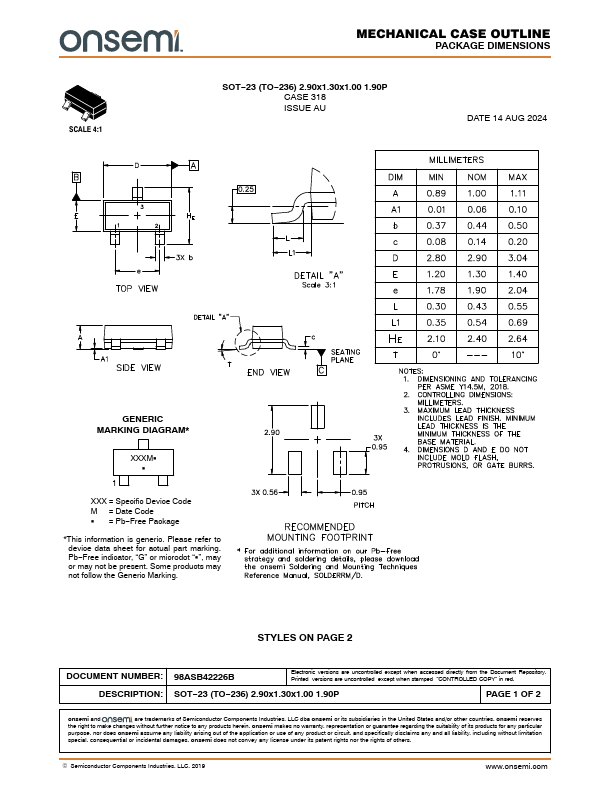

23 (TO 236) 2.90x1.30x1.00 1.90P PAGE 1 OF 2 onsemi and are trademarks of Semiconduc

Features

S Prefix for Automotive and Other.

onsemi

📥 Download Datasheet

Datasheet Details

Part number	BAV99L
Manufacturer	onsemi
File Size	168.70 KB
Description	Switching Diode
Datasheet	BAV99L Datasheet

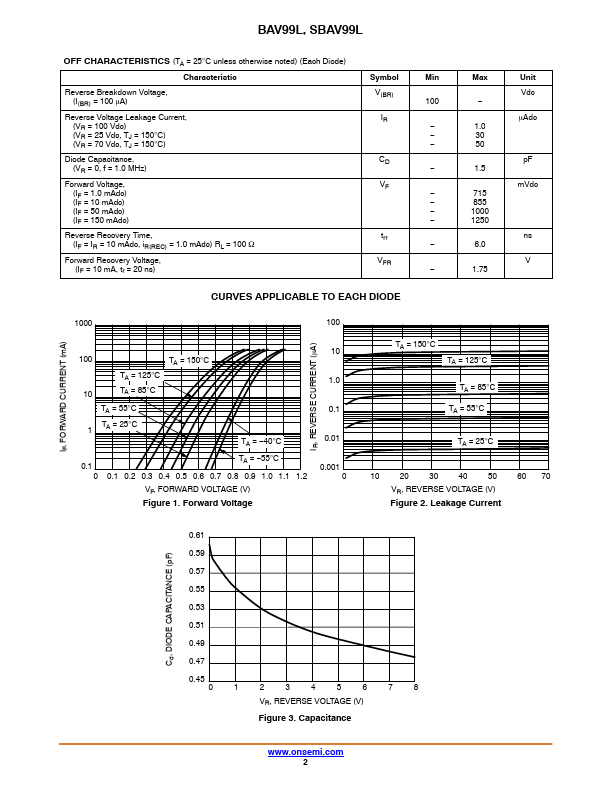

Additional preview pages of the BAV99L datasheet.

📁 Similar Datasheet

BAV99 - Silicon Epitaxial Planar Switching Diodes (Toshiba)
BAV99 - SWITCHING DIODE (SMC Diode)
BAV99 - Small Signal Switching Diode (Vishay)
BAV99 - SMD Small Signal Diodes (Diotec)
BAV99 - 200mA 70V High Conductance Ultra-Fast Switching Diode (ON Semiconductor)
BAV99 - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)
BAV99 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
BAV99 - Silicon Switching Diode (Infineon)
BAV99 - HIGH CONDUCTANCE ULTRA FAST DIODE (UTC)
BAV99 - Diodes (Multicomp)

Other Datasheets by onsemi

Full PDF Text Transcription

Click to expand full text

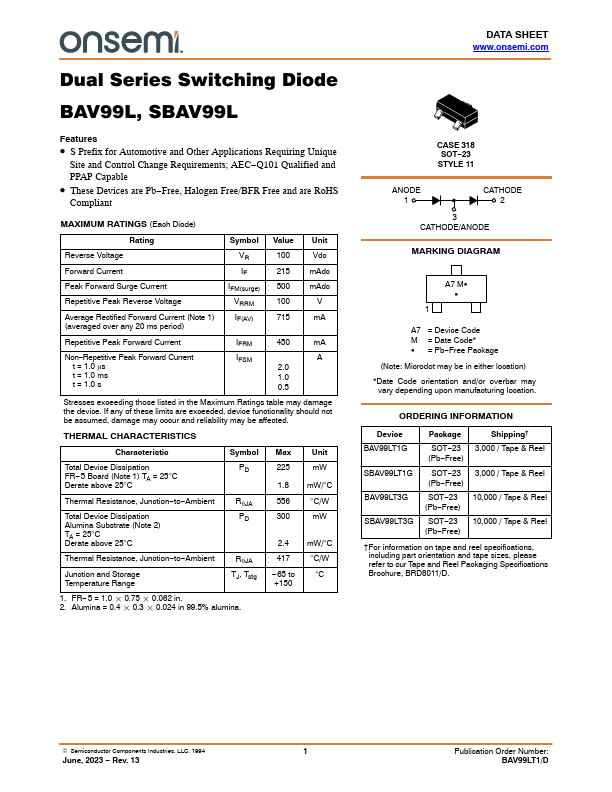

Dual Series Switching Diode BAV99L, SBAV99L Features • S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (Each Diode) Rating Symbol Value Unit Reverse Voltage VR 100 Forward Current IF 215 Peak Forward Surge Current IFM(surge) 500 Repetitive Peak Reverse Voltage VRRM 100 Average Rectified Forward Current (Note 1) IF(AV) 715 (averaged over any 20 ms period) Vdc mAdc mAdc V mA Repetitive Peak Forward Current Non−Repetitive Peak Forward Current t = 1.0 ms t = 1.0 ms t = 1.0 s IFRM 450 mA IFSM A 2.0 1.0 0.
