MC10EL01 Datasheet - onsemi

5V ECL 4-Input OR/NOR

MC10EL01 Features

* 230 ps Propagation Delay

* ESD Protection:  > 1 kV Human Body Model  > 100 V Machine Model

* PECL Mode Operating Range:  VCC = 4.2 V to 5.7 V with VEE = 0 V

* NECL Mode Operating Range:  VCC = 0 V with VEE =

* 4.2 V to

* 5.7 V

* Internal Input Pulldown Resisto

MC10EL01 General Description

The MC10EL/100EL01 is a 4-input OR/NOR gate. The device is functionally equivalent to the E101 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E101, the EL01 is ideally suited for those applications which require the ulti.

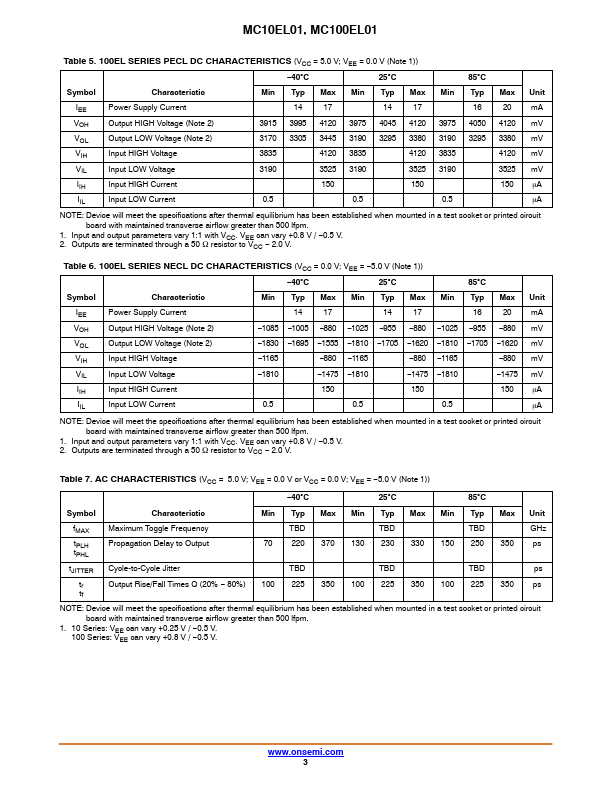

MC10EL01 Datasheet (181.98 KB)

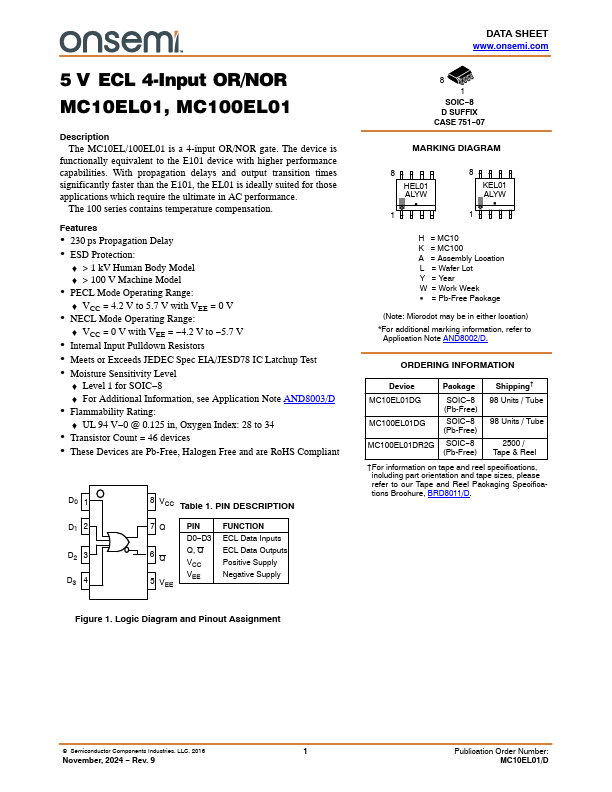

Preview of MC10EL01 PDF

Datasheet Details

Part number:

MC10EL01

Manufacturer:

onsemi

File Size:

181.98 KB

Description:

5v ecl 4-input or/nor.
