MC1455B, MC1455, Timers

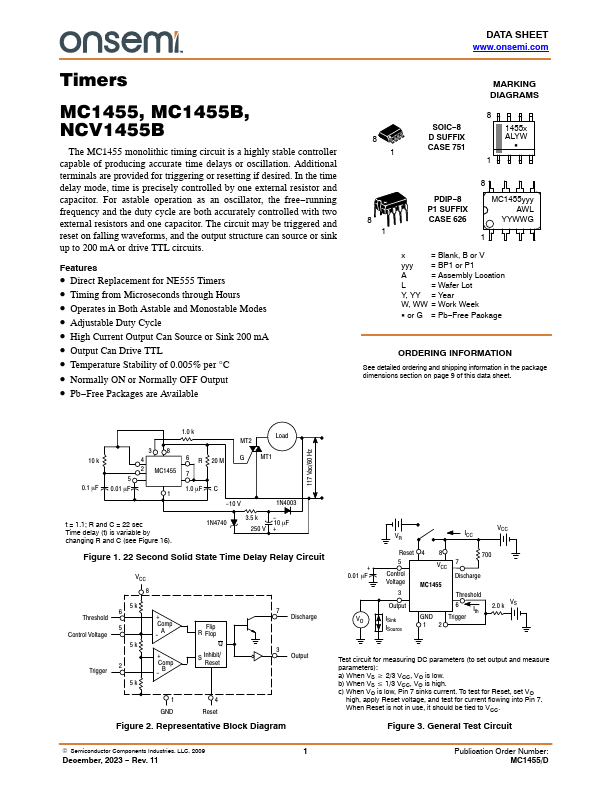

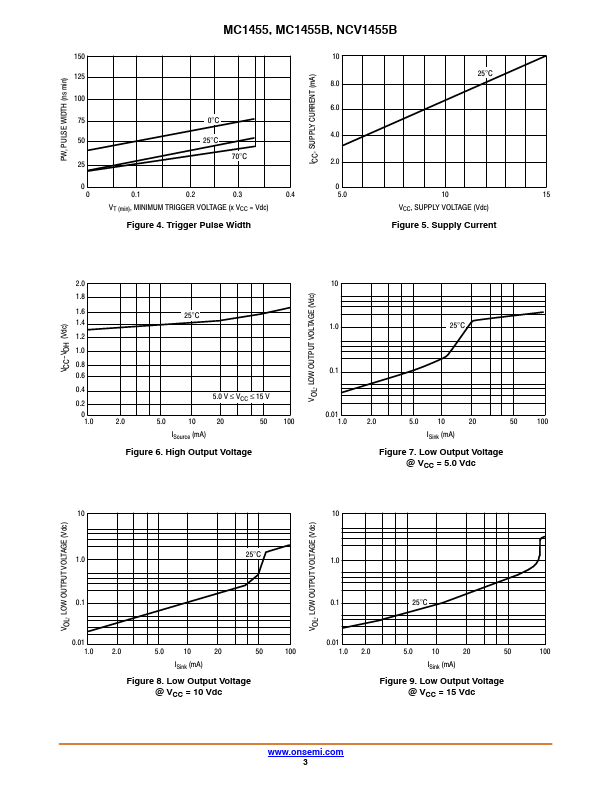

Timers MC1455, MC1455B, NCV1455B The MC1455 monolithic timing circuit is a highly stable controller capable of producing accurate time delays or oscillation.

Additional terminals are provided for triggering or resetting if desired.

In the time delay mode, time is precisely controlled by one external resistor and capacitor.

For astable operation as an oscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor.

The

MC1455B Features

* Direct Replacement for NE555 Timers

* Timing from Microseconds through Hours

* Operates in Both Astable and Monostable Modes

* Adjustable Duty Cycle

* High Current Output Can Source or Sink 200 mA

* Output Can Drive TTL

* Temperature Stabilit
