MC100EL01, MC10EL01 Datasheet - onsemi

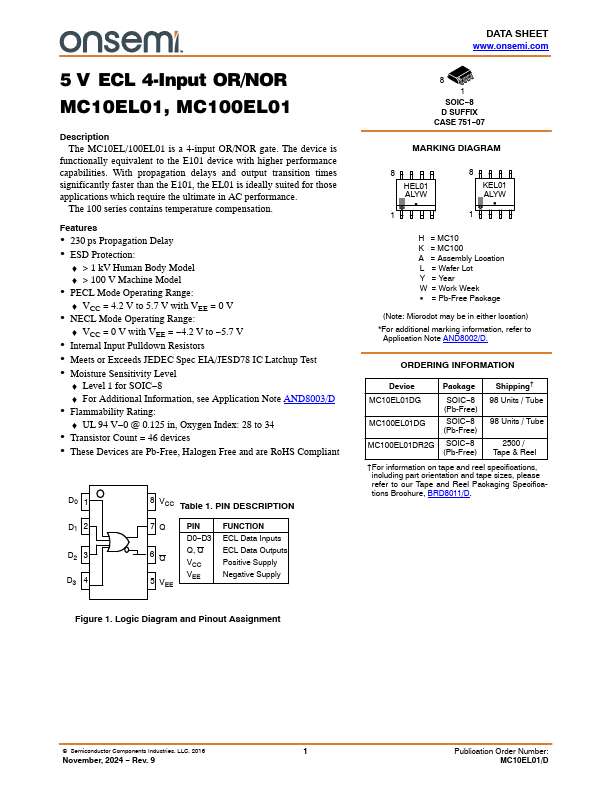

MC100EL01 5V ECL 4-Input OR/NOR

The MC10EL/100EL01 is a 4-input OR/NOR gate. The device is functionally equivalent to the E101 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E101, the EL01 is ideally suited for those applications which require the ulti.

MC100EL01 Features

* 230 ps Propagation Delay

* ESD Protection:  > 1 kV Human Body Model  > 100 V Machine Model

* PECL Mode Operating Range:  VCC = 4.2 V to 5.7 V with VEE = 0 V

* NECL Mode Operating Range:  VCC = 0 V with VEE =

* 4.2 V to

* 5.7 V

* Internal Input Pulldown Resisto

MC10EL01-onsemi.pdf

MC100EL01 Datasheet Preview — This datasheet PDF includes multiple part numbers: MC100EL01, MC10EL01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MC100EL01, MC10EL01

Manufacturer:

onsemi

File Size:

181.98 KB

Description:

5v ecl 4-input or/nor.

Note:

This datasheet PDF includes multiple part numbers: MC100EL01, MC10EL01.
Please refer to the document for exact specifications by model.
